Reach TrucksReach Truck

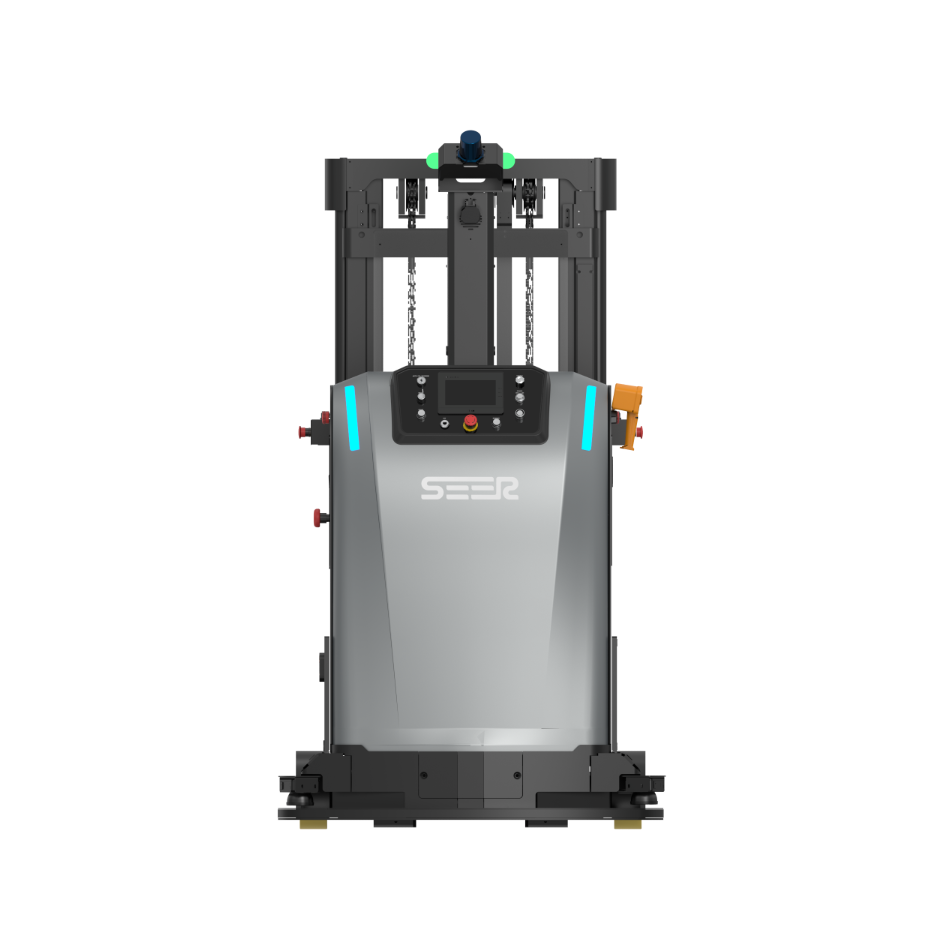

SSR-1400US
Flexible Reach, Slim Robot Body
The SSR-1400US is engineered for North American warehouse operations, combining a 1,400 kg load capacity with fork and aisle dimensions calibrated for standard US pallet sizes and warehouse layouts. Its slim reach truck body and advanced SLAM navigation enable high-bay automation across a wide range of American distribution and manufacturing facilities.
Key Features
- 1,400 kg load capacity (3,086 lbs)
- US pallet size calibrated (GMA-compatible forks)
- High-bay reach up to 10,000 mm (394 in)
- Slim body for narrow-aisle US layouts
- Laser SLAM precision navigation
- Compatible with standard US WMS platforms
1,400 kg (3,086 lbs)
Load Capacity
10,000 mm (394 in)
Max Lift Height
2.0 m/s (394 fpm)
Max Speed (No Load)
1.5 m/s (295 fpm)
Max Speed (Full Load)
Technical Specifications
Performance
| Load Capacity | 1,400 kg (3,086 lbs) |
| Max Lift Height | 10,000 mm (394 in) |
| Max Speed (No Load) | 2.0 m/s (394 fpm) |
| Max Speed (Full Load) | 1.5 m/s (295 fpm) |
| Aisle Width Requirement | ≥2,700 mm (106 in) |
| Positioning Accuracy | ±10 mm |
Dimensions
| Overall Width | 1,150 mm (45.3 in) |
| Fork Length | 1,200 mm (GMA pallet compatible) |
| Reach Distance | 680 mm |
Power & Battery
| Battery Type | Lithium-ion |
| Battery Voltage | 48V |
| Battery Capacity | 120Ah |
| Working Hours | ≥8h |
| Charging Mode | Auto-charge |
Navigation & Safety
| Navigation Type | Laser SLAM |
| Safety Sensors | 2× Laser Scanner + 3D Camera |
| Communication | WiFi 802.11 a/b/g/n/ac |
| Protection Rating | IP54 |
| Market | North America (ANSI/ITSDF) |
Typical Applications
North American Distribution Centers
High-Bay US Warehouses
Automotive Logistics
Retail Supply Chain
