CECertified
Reach TrucksReach Truck

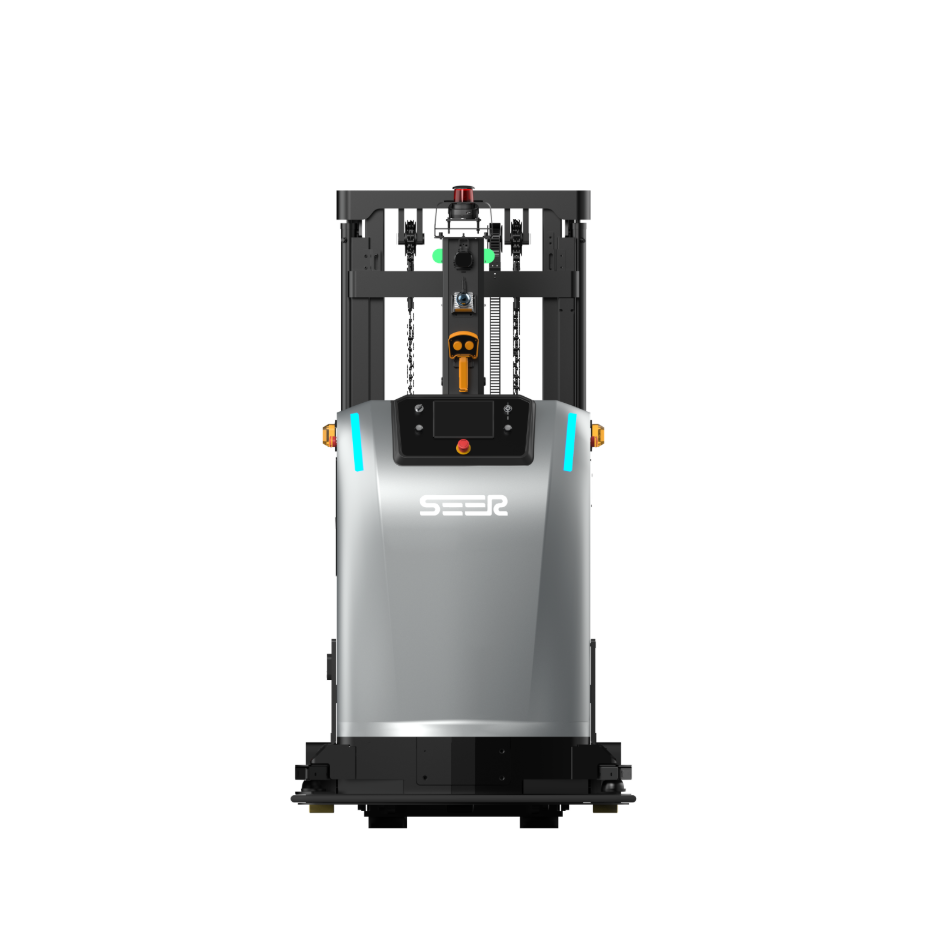

SSR-1400EU
Flexible Reach Truck, Slim Robot Body
The SSR-1400EU is the CE-certified European variant of SEER's 1,400 kg reach truck platform. Designed to meet European safety directives in full, it brings the same slim body and high-bay reach capability of the SSR-1400 with the additional compliance documentation and safety certification required for European market deployment.
Key Features
- 1,400 kg load capacity
- Full CE certification for European markets
- High-bay reach up to 10,000 mm
- Slim body for narrow-aisle operation
- VDA5050 open protocol support
- European-compliant safety suite
1,400 kg
Load Capacity
10,000 mm
Max Lift Height
2.0 m/s
Max Speed (No Load)
1.5 m/s
Max Speed (Full Load)
Technical Specifications
Performance
| Load Capacity | 1,400 kg |
| Max Lift Height | 10,000 mm |
| Max Speed (No Load) | 2.0 m/s |
| Max Speed (Full Load) | 1.5 m/s |
| Aisle Width Requirement | ≥2,700 mm |
| Positioning Accuracy | ±10 mm |
Dimensions
| Overall Width | 1,150 mm |
| Fork Length | 1,150 mm |
| Reach Distance | 680 mm |
Power & Battery
| Battery Type | Lithium-ion |
| Battery Voltage | 48V |
| Battery Capacity | 120Ah |
| Working Hours | ≥8h |
| Charging Mode | Auto-charge |
Navigation & Safety
| Navigation Type | Laser SLAM |
| Safety Sensors | 2× Laser Scanner + 3D Camera |
| Communication | WiFi 802.11 a/b/g/n/ac |
| Protection Rating | IP54 |
| Certification | CE |
Typical Applications
European High-Bay Warehouses
Automated Racking Systems
3PL Distribution
