Pallet TrucksAutonomous Pallet Truck

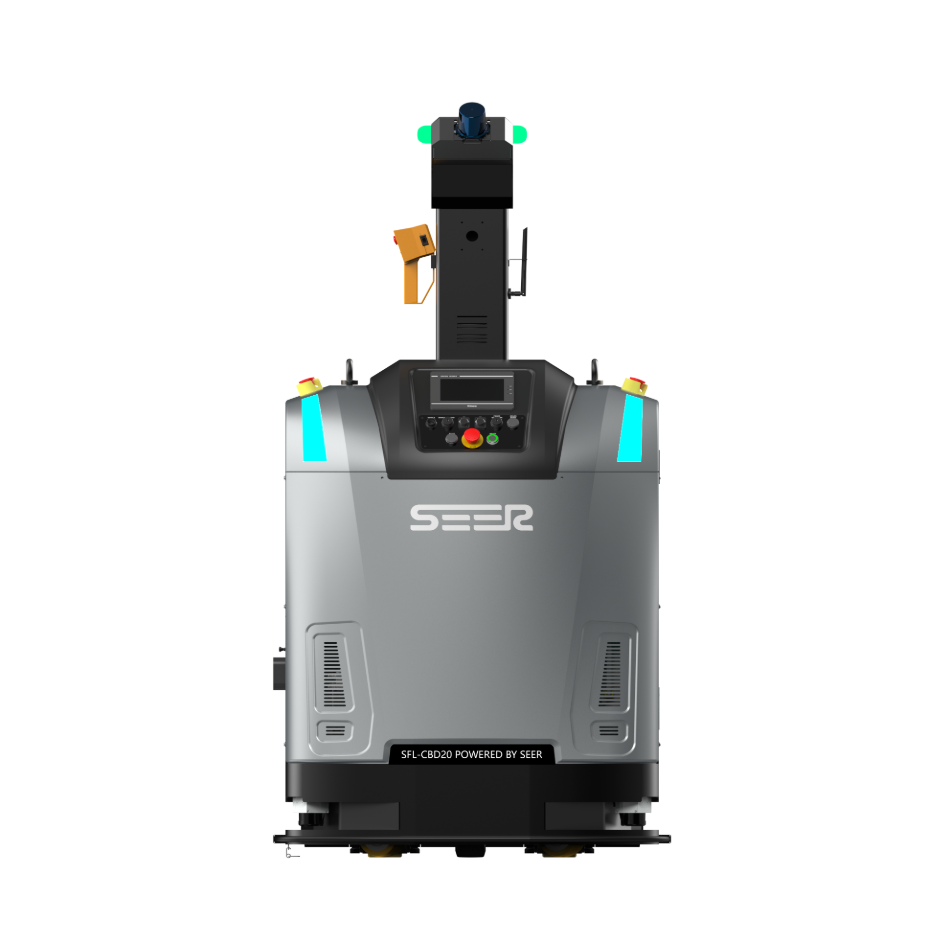

SFL-CBD20
Compact in Size, yet Capable of Handling 3-Ton Load
The SFL-CBD20 redefines compact heavy-duty logistics — packing a 2,000 kg payload capability into a sleek, space-efficient robot body. Ideal for operations where aisle width is limited but load capacity requirements remain high, the SFL-CBD20 delivers the power of a full-size pallet truck in a significantly smaller footprint.
Key Features
- 2,000 kg rated load capacity
- Compact body for narrow-aisle operations
- Laser SLAM precision navigation
- Up to 1.8 m/s travel speed
- Multi-layer obstacle detection
- VDA5050 open protocol support
2,000 kg
Load Capacity
1.8 m/s
Max Speed (No Load)
1.2 m/s
Max Speed (Full Load)
≤5%
Gradeability
Technical Specifications
Performance
| Load Capacity | 2,000 kg |
| Max Speed (No Load) | 1.8 m/s |
| Max Speed (Full Load) | 1.2 m/s |
| Gradeability | ≤5% |
| Positioning Accuracy | ±10 mm |
Dimensions
| Fork Length | 1,150 mm |
| Overall Width | 860 mm |
| Overall Height | 360 mm |
Power & Battery
| Battery Type | Lithium-ion |
| Battery Voltage | 48V |
| Battery Capacity | 80Ah |
| Working Hours | ≥8h |
| Charging Mode | Auto-charge / Manual |
Navigation & Safety
| Navigation Type | Laser SLAM |
| Safety Sensors | 2× Laser Scanner + 3D Camera |
| Communication | WiFi 802.11 a/b/g/n/ac |
| Protection Rating | IP54 |
Typical Applications
Compact Warehouse Operations
Narrow-Aisle Logistics
E-commerce Fulfillment
