Question 1

What is an automated lifting robot?

Accepted Answer

An automated lifting robot is a driverless mobile robot that slides under a shelf, rack or pallet, lifts it, and carries it across the warehouse — no operator and no fixed conveyor. FlyWei's lifting robots are the AMB and SBA series: latent-jacking and rotary-lift AMRs built for goods-to-person picking, shelf-moving, tugging and pallet transport. They navigate by SLAM laser, dock to ±5 mm, and run up to 12 hours on a charge.

Question 2

What can the AMB-300 base robot do?

Accepted Answer

The AMB-300 is a compact base robot (mobile platform) — it carries a fixed top deck or a bolt-on module and transports loads up to 300 kg autonomously, without any built-in lift or jacking mechanism. It sits in FlyWei's AMB range alongside the AMB-150 and AMB-300XS; for under-shelf jacking choose the AMB-300JZ, and for high-capacity jacking the AMB-1000JS. The AMB-300 suits goods-to-person picking and dense intralogistics layouts, with ±5 mm docking accuracy.

Question 3

What is the difference between a lifting robot and a base AMR?

Accepted Answer

A base AMR (such as the AMB-150 or SBA-400EU) is the mobile platform — it carries a fixed top deck or a bolt-on module. A lifting robot adds an active lift mechanism: latent jacking (AMB-300JZ, AMB-JS), rotary lift (SJV-SW600) or under-shelf jacking, so it can pick a load up and set it down rather than only carry it. Both share the same controller and M4/RDS fleet software, so you can run them together in one fleet.

Question 4

Can one lifting robot handle different shelves and loads?

Accepted Answer

Yes. FlyWei lifting robots use interchangeable top modules — jacking, conveyor, roller and shelf adaptors — so a single robot can move shelves, pallets, cages and totes. Payloads range from a few hundred kilograms on the AMB-300 up to 1,000 kg on the AMB-1000JS. A free UK site survey matches the right module and payload to your racking and SKUs.

Basic parameters	Navigation type	Laser SLAM
	Dimensions (L x W x H)	958.20 x 588 x 182 mm / (37.72 x 23.15 x 7.17 in)
	Rotation diameter	1004 mm / (39.53 in)
	Weight (with battery)	100 kg / (220.46 lb)
	Chassis ground clearance	20 mm / (0.79 in)
	Navigation laser scanning height	196.5 mm / (7.74 in)
	Ambient temperature and humidity range	TEMP: 0°C to 50°C / RH: 10% to 90%, no condensation (32°F to 122°F)
Performance parameters	Passability (slope / step / gap)	≤5% / 5 mm / 30 mm / (≤5% / 0.20 in / 1.18 in)
	Minimum aisle width	728 mm
	Navigation position accuracy	±5 mm / (±0.20 in)
	Navigation angle accuracy	±0.5°
	Driving speed	≤1.5 m/s / (≤4.92 ft/s)
Battery parameters	Battery specifications	48 V / 23 Ah (lithium iron phosphate)
	Comprehensive battery life	8 h
	Charging time (10% to 80%)	≤1 h
	Charging method	Manual / Automatic
Configurations	Lidar number	2 (SICK HV)
	E-stop button	●
	Speaker	●
	Ambient lamp	●
Function configurations	Basic functions	●
	Wi-Fi roaming	●
	Automatic charging	●
	Shelf recognition	●
	Laser reflector navigation	○
	3D obstacle avoidance	●
	Precise positioning with QR code	○
Certifications	ISO 3691-4	●
	EMC	●
	UN38.3	●
Drawing

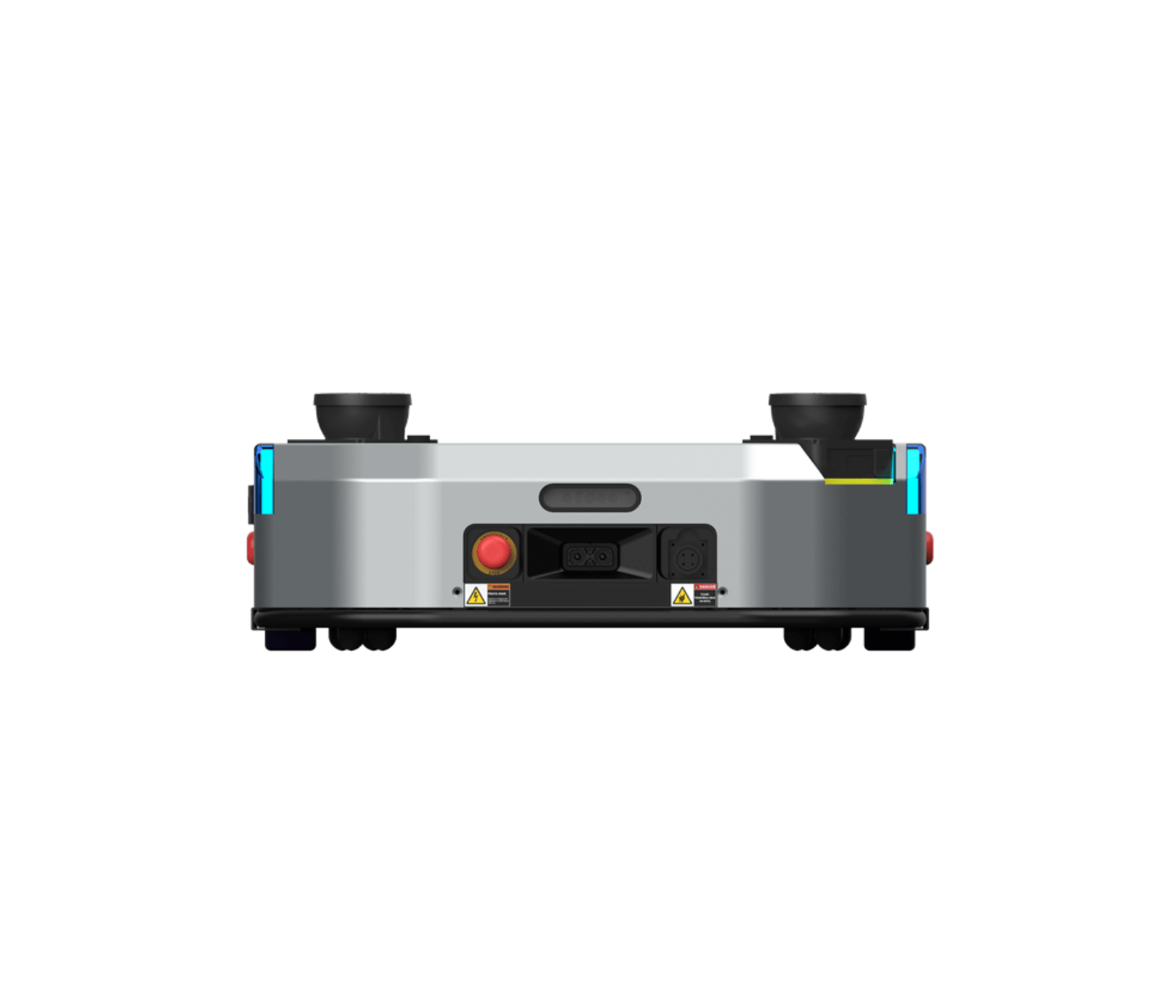

SBA-400EU

Interactive 3D Model

Product parameters

Full specifications
