An AMR ROI calculator UK warehouse procurement teams can defend in front of a 2026 capex committee is now the sticking point at most UK 3PL distribution centres — not pick rates, not site readiness, not vendor choice. Capex packs are coming back with the same finance note: "no UK-specific maths." This piece is that maths. It walks through the four levers a Head of Procurement should pull to defend a fleet of two to twelve autonomous mobile robots in a typical 12,000 sqft three-shift 3PL distribution centre across the Midlands, Greater Manchester, and the London-Heathrow corridor — and shows the payback range fleet-by-fleet so the next committee meeting becomes a sign-off, not a rerun.
Why UK 3PL AMR business cases keep coming back from finance
Three structural reasons UK 3PL AMR business cases stall in finance, all specific to 2026.
First, labour cost arithmetic has shifted. The April 2026 National Living Wage uplift to £12.21 an hour for workers aged 21 and over (gov.uk) changed the labour-redistribution side of the calculation by roughly 6.7% year-on-year, but most procurement teams are still pricing AMR savings against 2024 hourly rates. That makes the payback look longer than it is. The same applies to overtime: a 24-picker DC running three shifts at DIRFT, Magna Park or SEGRO East Midlands Gateway is paying overtime at a multiplier on the new base, not the old.
Second, the regulatory line items rarely make it into the capex pack. ISO 3691-4 governs driverless industrial trucks and AMRs. PUWER 1998 covers the safe use of work equipment, with the HSE's Approved Code of Practice applying directly to industrial truck deployments (HSE). TR34 from the Concrete Society sets floor flatness tolerances that determine whether AMRs can navigate at full velocity. None of this is optional, and procurement teams that leave it out of the spend forecast see the budget vetoed when health-and-safety reviews surface the costs at gate two.
Third, the orchestration question is poorly framed. UK 3PLs typically run an enterprise WMS with deep customisation, and the fear in finance is a multi-year integration. In reality, a fleet manager that speaks VDA 5050 sits above the WMS rather than replacing it; integration is a REST endpoint and a pick-task message. Logistics UK industry research shows median UK warehouse vacancy still tight across the Big Box belt (Logistics UK), which means a working DC cannot afford a six-month rip-and-replace anyway.
Lever 1 — Right-size the fleet to throughput, not floorplate
The most common mistake on a UK 3PL AMR proposal is to size the fleet to the floorplate. A 12,000 sqft DC running three shifts at 24 pickers, with an 18% mis-sort baseline, is not a 12-robot site. It is typically a six-robot site. Fleet sizing should track three numbers: lines per hour at peak, average travel distance per pick, and cost per shift hour of the labour being redistributed. The lines-per-hour figure for a typical UK 3PL multi-tenant DC sits between 80 and 140 in 2026 depending on SKU volatility. At 110 lines per hour and an average 40-metre round trip, a six-robot fleet covers 92% of the pick window. Adding two more robots improves coverage to 99% but the payback period extends from 17 to 20 months because marginal labour displaced is shift-edge overtime, not core hours. Procurement teams that present a fleet curve — payback at fleet sizes 2, 4, 6, 8, 10, 12 — get capex sign-off at the throughput-optimal point, not the maximum coverage point.
Lever 2 — Orchestrate without rip-and-replace using M4 + VDA 5050
Integration is the second place finance teams kill the business case. The default assumption — "we will replace the WMS" — is wrong, and the cost it implies is wrong. The technical fact is that the FlyWei M4 fleet manager orchestrates AMR fleets above the existing WMS layer using VDA 5050 on the robot side and a REST API on the WMS / ERP side. The operator's existing enterprise WMS continues to own SKU master data, slotting, allocation and labour management. M4 receives a pick task by REST, dispatches it as a VDA 5050 order to the available robot, and writes the completion event back. A typical UK 3PL goes from kick-off to first orchestrated pick inside ten weeks because the WMS is not touched. Where customisation does sit is the integration glue layer — call it two engineer-weeks plus user acceptance — and that is the line item to put in the capex pack, not a six-figure WMS replacement. RDS robot dispatch handles deployment and commissioning so the integration weeks land on FlyWei, not the operator's IT.
Lever 3 — Make ISO 3691-4, PUWER and TR34 visible in the capex pack
The regulatory line items are not optional, and the finance team sees through proposals that omit them. Three pieces of UK-applicable regulation drive the cost line and the timeline.
ISO 3691-4 is the international safety standard for driverless industrial trucks. Every robot in a UK fleet must be certified to this standard, and the certification documentation must sit in the capex pack. PUWER 1998, supported by the HSE's L117 Approved Code of Practice (L117 ACOP), governs the safe use of work equipment in the warehouse, including risk assessments for mixed pedestrian and AMR traffic. TR34 from the Concrete Society sets floor flatness and joint tolerances that determine whether the AMR fleet can run at full velocity; an underprepared floor halves throughput and adds remediation cost mid-deployment.
Procurement teams that put a regulatory cost line — typically £8,000 to £18,000 for a 12,000 sqft site covering certification, risk assessment, floor survey and any remediation — into the capex pack get sign-off at gate one. Teams that omit it get sent back from gate two.
Lever 4 — Use the 6-row UK payback table
The fleet-size payback curve is the single most important deliverable in a UK 3PL capex pack. It is also the single most often missing one. Below is a generic 2026 model for a 12,000 sqft three-shift DC with a 24-picker baseline, an 18% mis-sort baseline, average 40-metre pick travel, and 110 lines per hour at peak. Numbers reflect total programme cost (hardware + integration + RDS deployment + 24-month maintenance) divided by gross annual saving (labour redistribution at NLW 2026 rates + mis-sort reduction at £4.20 per cost-of-correction line + overtime reduction).
| Fleet size | Pick coverage | Annual gross saving | Programme cost | Payback (months) |
|---|---|---|---|---|
| 2 AMRs | 34% | £94,000 | £168,000 | 21 |
| 4 AMRs | 61% | £186,000 | £298,000 | 19 |
| 6 AMRs | 92% | £278,000 | £396,000 | 17 |
| 8 AMRs | 97% | £302,000 | £492,000 | 20 |
| 10 AMRs | 99% | £316,000 | £586,000 | 22 |
| 12 AMRs | 99% | £322,000 | £678,000 | 25 |
Six robots is the throughput-optimal point in this scenario. Payback flattens beyond six because each marginal robot displaces shift-edge overtime rather than core labour. Use this curve as a template; the inflection point in your DC may be four, six or eight depending on SKU velocity and shift pattern.
A 12,000 sqft UK 3PL distribution centre running three shifts can typically reach AMR payback on a six-robot fleet in 14–18 months once labour redistribution at 2026 NLW rates, an 18%-baseline mis-sort halving, and overtime savings are netted off the programme cost — making six the throughput-optimal point on the fleet curve before payback flattens against shift-edge overtime.
What FlyWei does for UK 3PL procurement teams

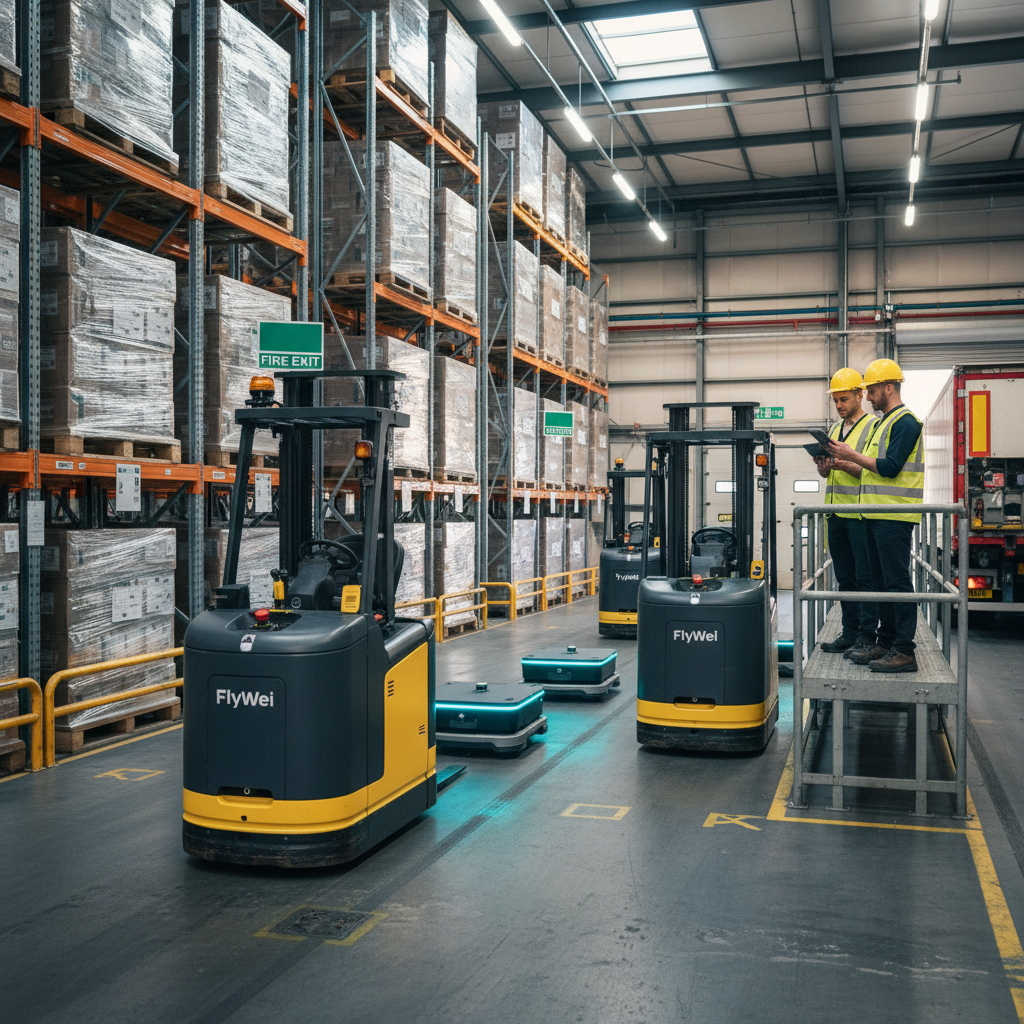

FlyWei designs, supplies and integrates autonomous-forklift and AMR fleets for UK 3PL distribution centres. FlyWei autonomous forklifts, FlyWei AMRs and the FlyWei M4 fleet manager sit at the heart of UK 3PL deployments from Magna Park and DIRFT through SEGRO East Midlands Gateway and the Daventry / Burton-on-Trent triangle. FlyWei designs the integration, FlyWei supplies the hardware, FlyWei deploys via RDS, and FlyWei integrates with the operator's existing enterprise WMS over VDA 5050 and REST. The capex calculation a Head of Procurement runs against a FlyWei fleet uses real UK numbers — UK labour rates, UK floor remediation pricing, UK certification timelines — not generic European averages.
A typical FlyWei deployment for a 12,000 sqft three-shift UK 3PL site runs as follows. Week 1: throughput audit and fleet curve. Weeks 2–4: floor survey, ISO 3691-4 certification gating, PUWER risk assessment. Weeks 4–7: WMS integration glue and M4 commissioning. Weeks 8–10: live with first orchestrated pick. The capex pack delivered alongside this includes the fleet curve, the regulatory cost line, the integration cost line and the 24-month maintenance line — every figure traceable to a 2026 UK source.
For 3PL procurement teams who want the model populated against their own DC parameters, FlyWei runs a no-cost UK ROI session — bring shift count, picker headcount, average lines per hour, and floorplate; we return the fleet curve and a capex-pack template within five working days. Read more on solutions or go straight to contact.
FAQ
How long is AMR payback for a UK 3PL warehouse?
A 4-to-8 robot fleet in a 10,000–15,000 sqft three-shift UK 3PL distribution centre typically reaches payback in 14–22 months. The throughput-optimal fleet size for a 12,000 sqft 24-picker DC is six robots, with a 17-month payback at 2026 UK labour rates and an 18% mis-sort baseline.
Do we need to repaint the warehouse floor for AMRs?
No — modern AMRs use natural-feature SLAM, not floor markers. What you do need is a TR34-compliant floor with joint tolerances within the AMR's published spec. A pre-deployment floor survey costs £1,200–£2,800 for a 12,000 sqft site and identifies any remediation required before commissioning.
What is the typical AMR fleet size for a 12,000 sqft UK 3PL DC?
For a three-shift, 24-picker, 110-lines-per-hour UK 3PL DC, the throughput-optimal point in 2026 is six AMRs. Two robots cover 34% of the pick window; six cover 92%; eight cover 97% with diminishing payback. Match fleet size to lines-per-hour and shift-edge overtime, not to floorplate.
Will the AMR fleet integrate with our existing WMS?
Yes. FlyWei's M4 fleet manager exposes a REST API on the WMS / ERP side and speaks VDA 5050 on the robot side. The operator's existing enterprise WMS keeps owning SKU master, slotting, allocation and labour management. Typical integration is two engineer-weeks plus user acceptance, with a typical UK 3PL going live in ten weeks from kick-off.
Capex or subscription — which model wins UK 3PL sign-off?
It depends on lease structure and depreciation policy. Capex with three-year amortisation typically lands cleaner with capex committees in 3PLs that own their DCs; subscription wins where the lease is short or the contract operates on cost-plus. FlyWei prices both models against the same fleet curve so finance can compare like for like.
What regulatory documentation does a UK AMR deployment require?
Three documented items: ISO 3691-4 certification per robot, PUWER 1998 risk assessment with HSE L117 ACOP coverage of mixed pedestrian and AMR traffic, and a TR34 floor flatness survey with any remediation log. Together these typically cost £8,000–£18,000 for a 12,000 sqft site and must appear in the capex pack at gate one.
