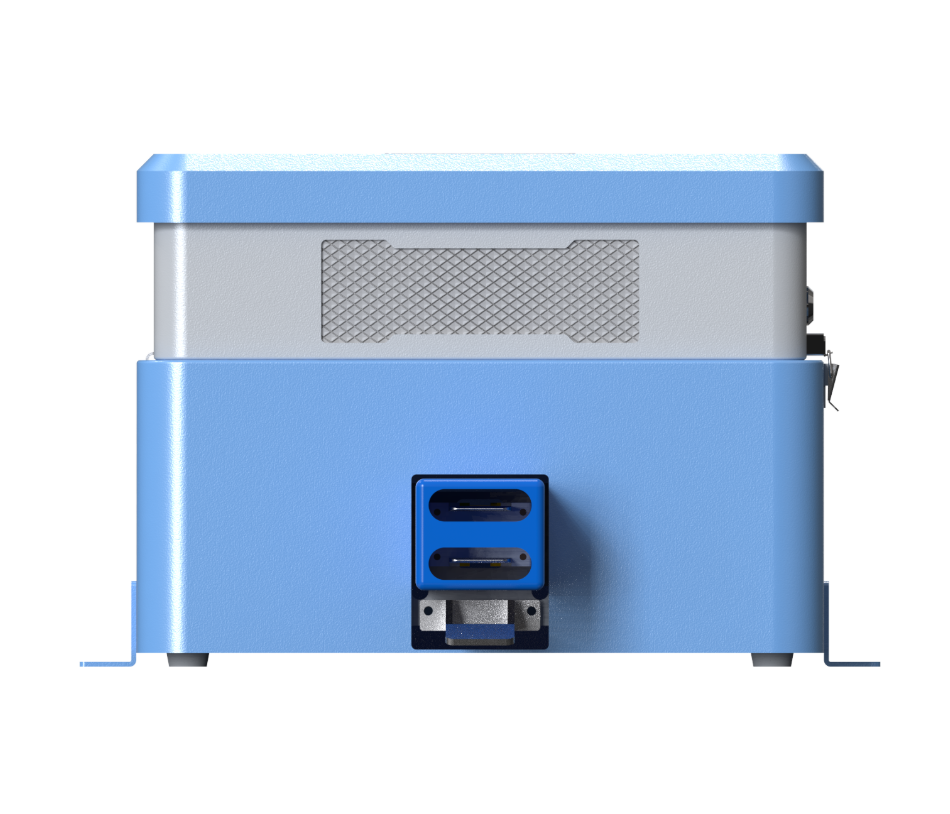

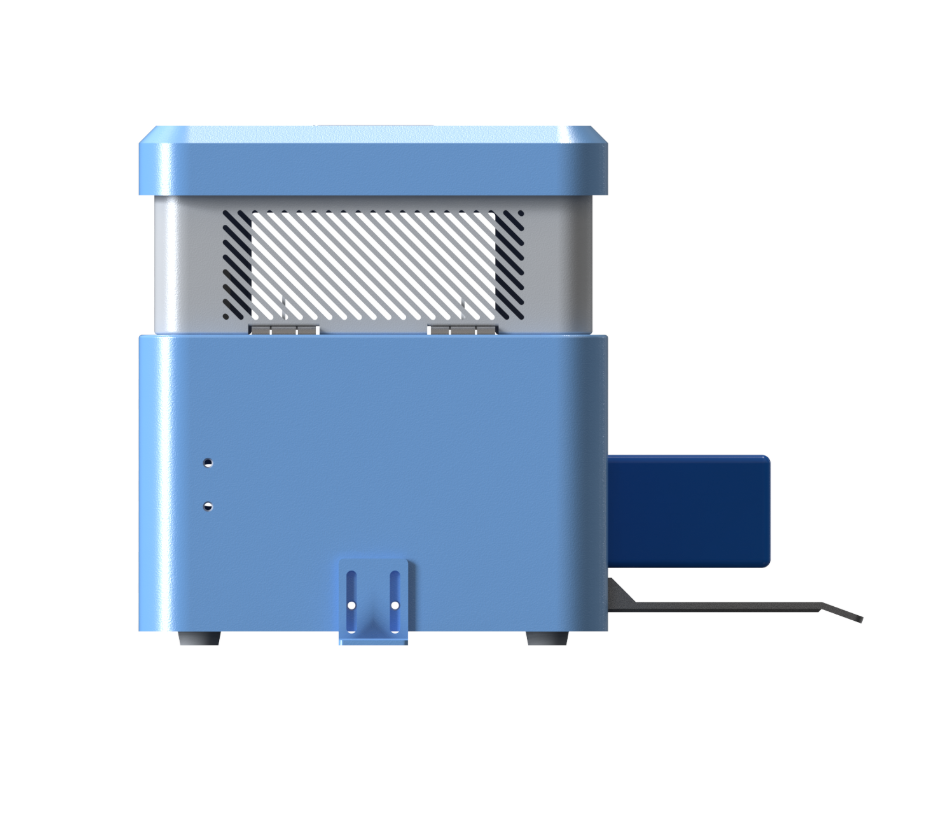

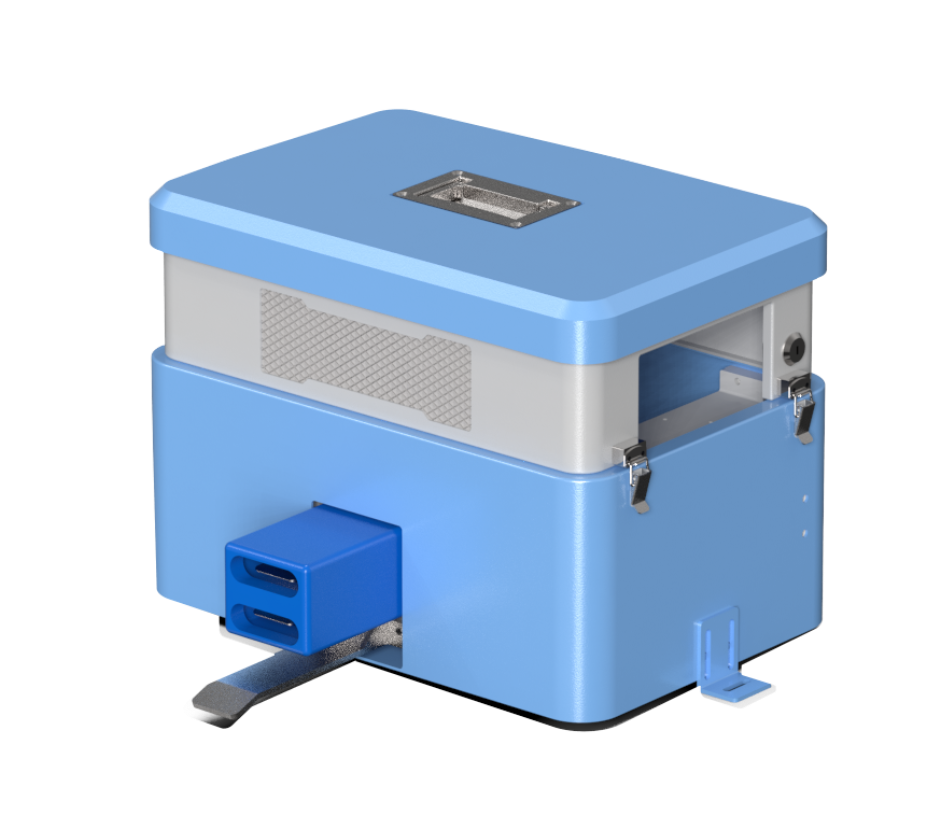

Robotic Automatic Charging Station SCS-2002
‹
›
Charging Station
Robotic Automatic Charging Station
CE
SCS-2002
Robotic automatic charging station — hands-free docking and charging for AMR fleets.
↓ Request datasheet (PDF)
🎯
Automatic Charging Based on Robots from SEER Robotics
📡
Supports Manual Charging
🔌
New Industrial Design
🛡️
Intelligent Charging: Automatically adjust the power supply strategy according to the battery feedback.
Product parameters
📶
50 / 60
Input Frequency (Hz)
⚡
48
DC Output Voltage (V)
🔌
20
DC Output Current (A)
🛡️
IP20
IP Rating
⚡
54.75±0.2
Maximum Output Voltage (V)
Full specifications
L x W x H466 x 417 x 299 mm
AC input voltage220 V
Input frequency50 / 60 Hz
DC output voltage48 V
Maximum output voltage54.75±0.2 V
DC output current20 A
Maximum output current20±5% A
Maximum output power1200 W
Weight19 kg
Connector for manual chargingLP24-4P
Plug specificationGB 10A
Suitable product modelNew AMB (lithium iron phosphate battery)
Request datasheet →Get a quote

Related products

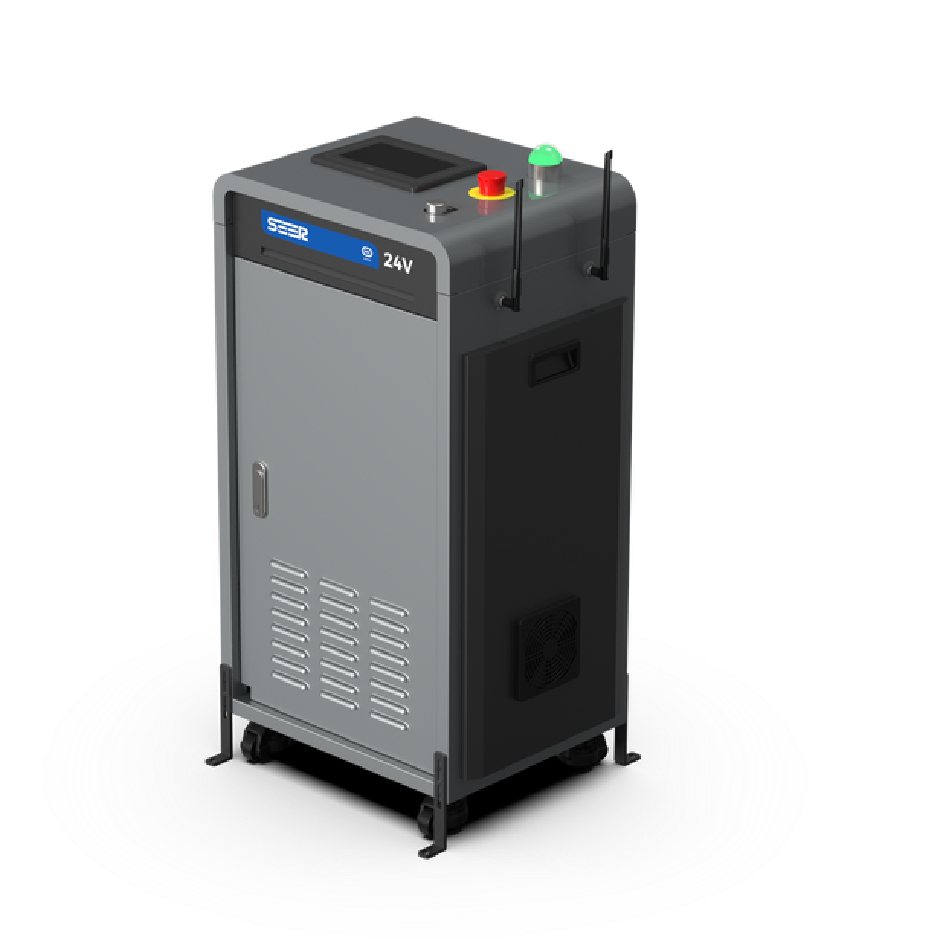

Robotic Automatic Charging Station SCS-C24100D
Robotic Automatic Charging Station
SCS-C24100D
Robotic Automatic Charging Station SCS-C4850D
Robotic Automatic Charging Station
SCS-C4850D
Robotic Automatic Charging Station SCS-C48100D
Robotic Automatic Charging Station
SCS-C48100D

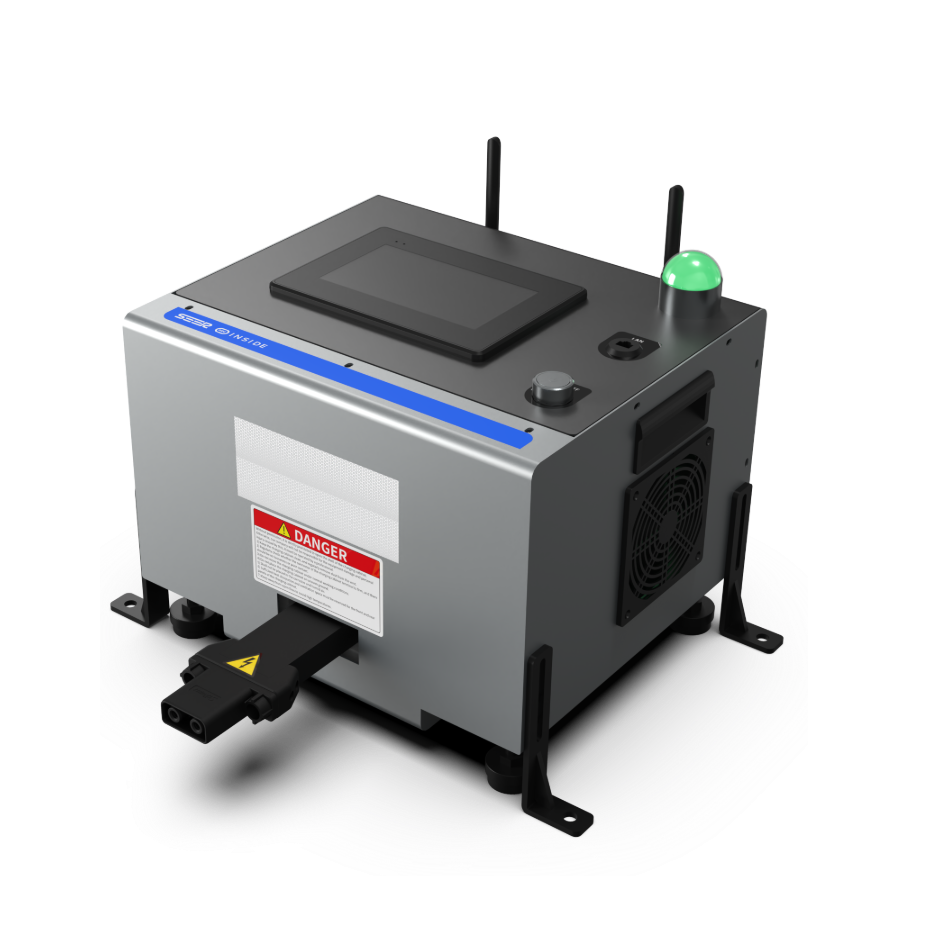

Robotic Automatic Charging Station SCS-C4860
