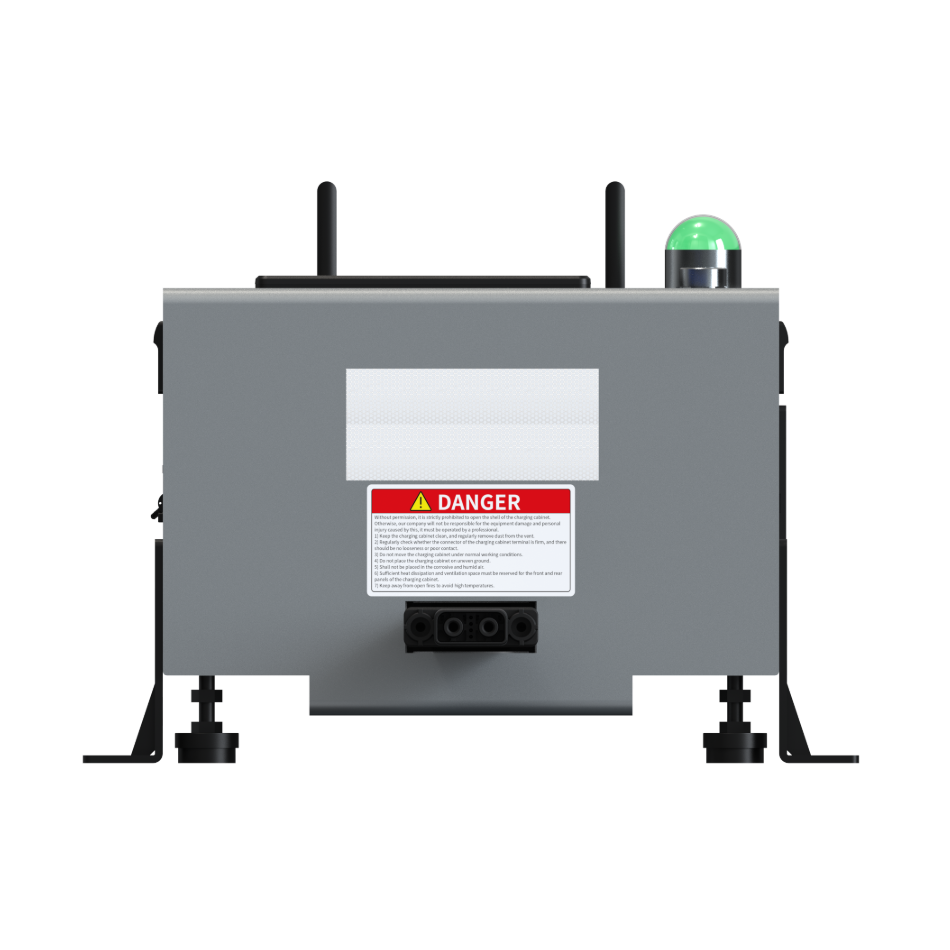

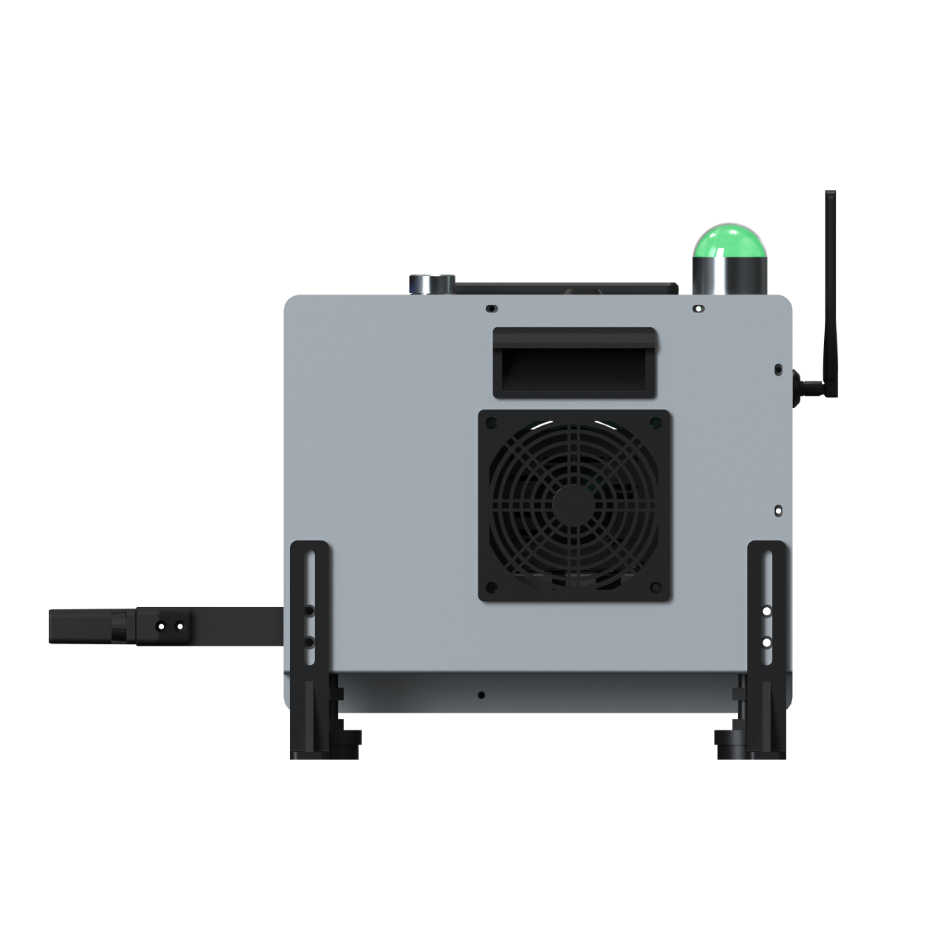

Robotic Automatic Charging Station SCS-C4860
‹
›
Charging Station
Robotic Automatic Charging Station
CE
SCS-C4860
Multi-purpose robotic charging station — adaptable, efficient autonomous charging.
↓ Request datasheet (PDF)
🎯
3 kW High Power, Fast Charging and High Compatibility
📡
6-Layer Protection, Safe and Worry-free
🔌
Multi-mode Charging, Flexible and Convenient
🛡️
Remote Monitoring with Clear View
Product parameters
📶
50 / 60
Input Frequency (Hz)
⚡
32~60
DC Output Voltage (V)
🔌
30 / 60
DC Output Current (A)
🛡️
IP20
IP Rating
⚡
60
Maximum Output Voltage (V)
Full specifications
L x W x H452 x 485 x 385 mm
AC input voltage110 V to 120 V / 220 V to 240 V
Input frequency50 / 60 Hz
DC output voltage32 V to 60 V
Maximum output voltage60 V
DC output current30 / 60 A
Maximum output current30 / 60 A
Maximum output power1500 / 3000 W
Weight16 kg
NetworkWi-Fi (recommended), Wired, 5G
Working temperature0℃ to 40℃
Ambient Humidity5% to 90%
Working altitude≤2000 m
Plug specificationGB 16A / optional
Contamination level2
Overvoltage levelⅡ
Reference standardEN 62477-1
Suitable product model48 V Small AMR series
Request datasheet →Get a quote
