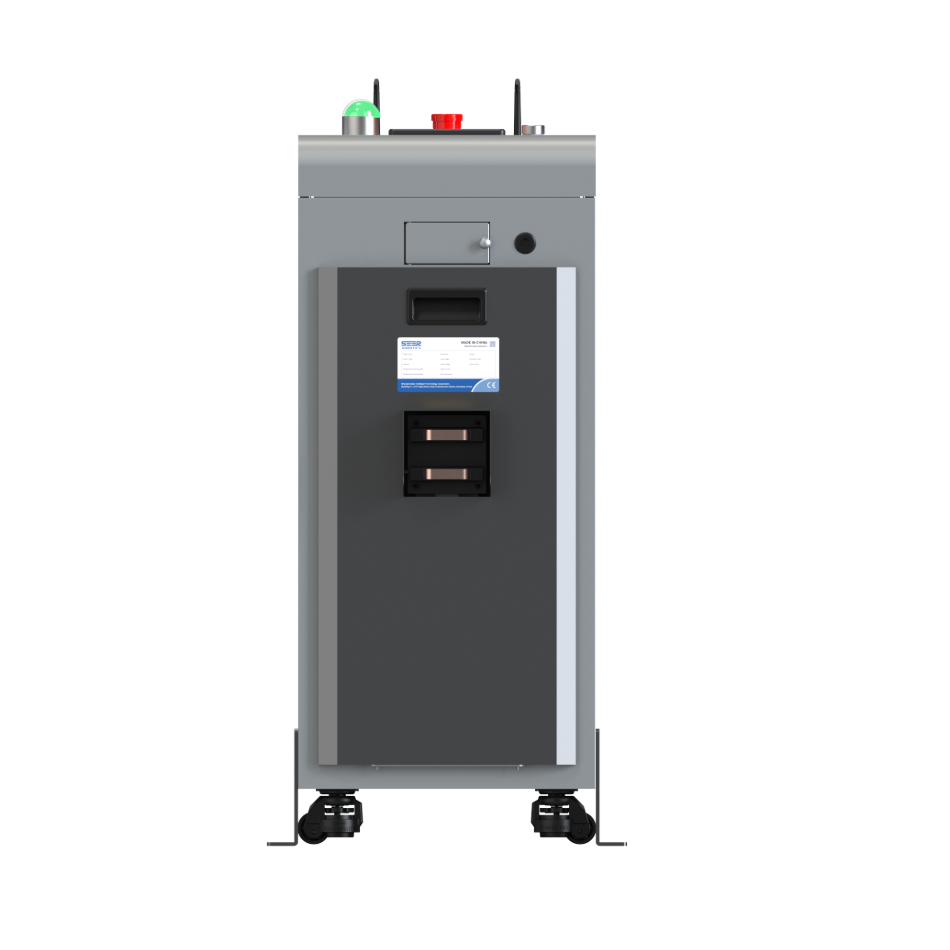

Robotic Automatic Charging Station SCS-C48100D
‹
›
Charging Station
Robotic Automatic Charging Station
CE
SCS-C48100D
High-output robotic charging station — one station, multiple uses, fast and convenient.
↓ Request datasheet (PDF)
🎯
6 kW High Power, Fast and Highly Compatible
📡
6 Layers of Protection, Charge with Confidence
🔌
Multi-Mode Charging, Adaptable and Flexible
🛡️
Comprehensive HMI, All-in-One Interaction
📦
Remote Monitoring, Worry-Free Oversight
Product parameters
📶
50 / 60
Input Frequency (Hz)
⚡
32~60
DC Output Voltage (V)
🔌
100
DC Output Current (A)
🛡️
IP20
IP Rating
⚡
60
Maximum Output Voltage (V)
Full specifications
L x W x H580 x 460 x 980 mm
AC input voltage380±10% V
Input frequency50 / 60 Hz
DC output voltage32 V to 60 V
Maximum output voltage60 V
DC output current100 A
Maximum output current100 A
Maximum output power6000 W
Weight50 kg
Connector for manual chargingREMA160
NetworkWi-Fi (recommended), Wired, 5G
Working temperature0℃ to 40℃
Ambient Humidity5% to 90%
Working altitude≤2000 m
Plug specificationIndustrial 32A
Contamination level2
Overvoltage levelⅡ
Reference standardEN 62477-1:2012+A11:2014+A1:2017+A12:2021
Suitable product model48 V, autonomous forklift
Request datasheet →Get a quote

Related products

Robotic Automatic Charging Station SCS-C24100D
Robotic Automatic Charging Station
SCS-C24100D
Robotic Automatic Charging Station SCS-C4850D
Robotic Automatic Charging Station
SCS-C4850D
Robotic Automatic Charging Station SCS-C4860
Robotic Automatic Charging Station
SCS-C4860

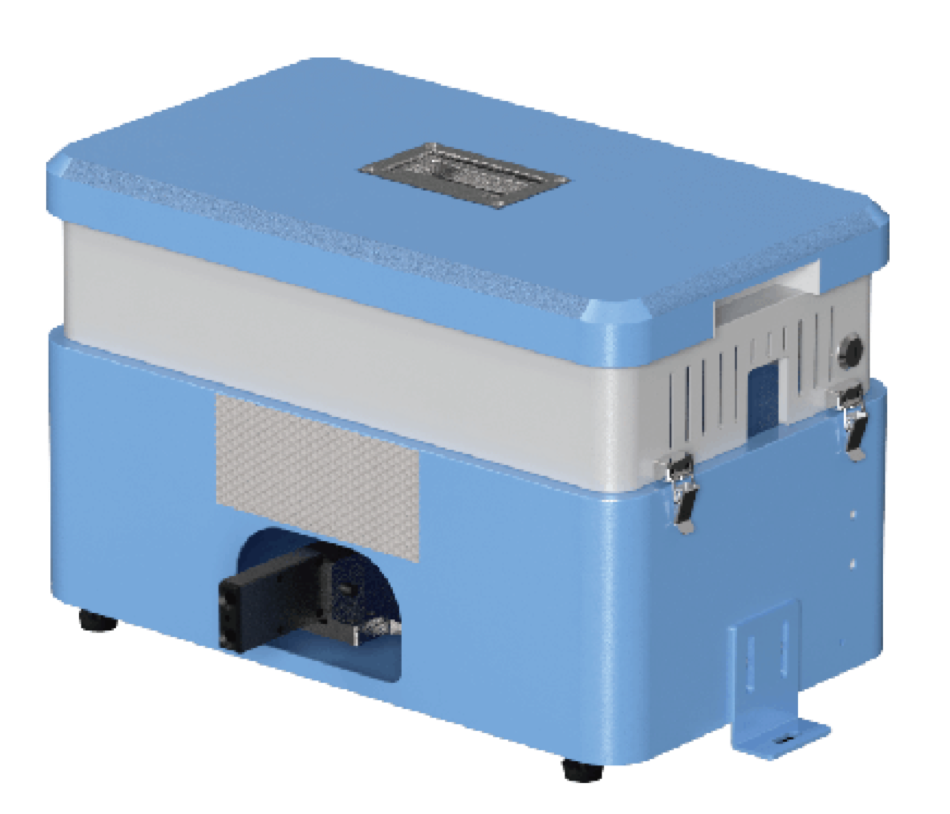

Robotic Automatic Charging Station SCS-N4815FV1-JP10
