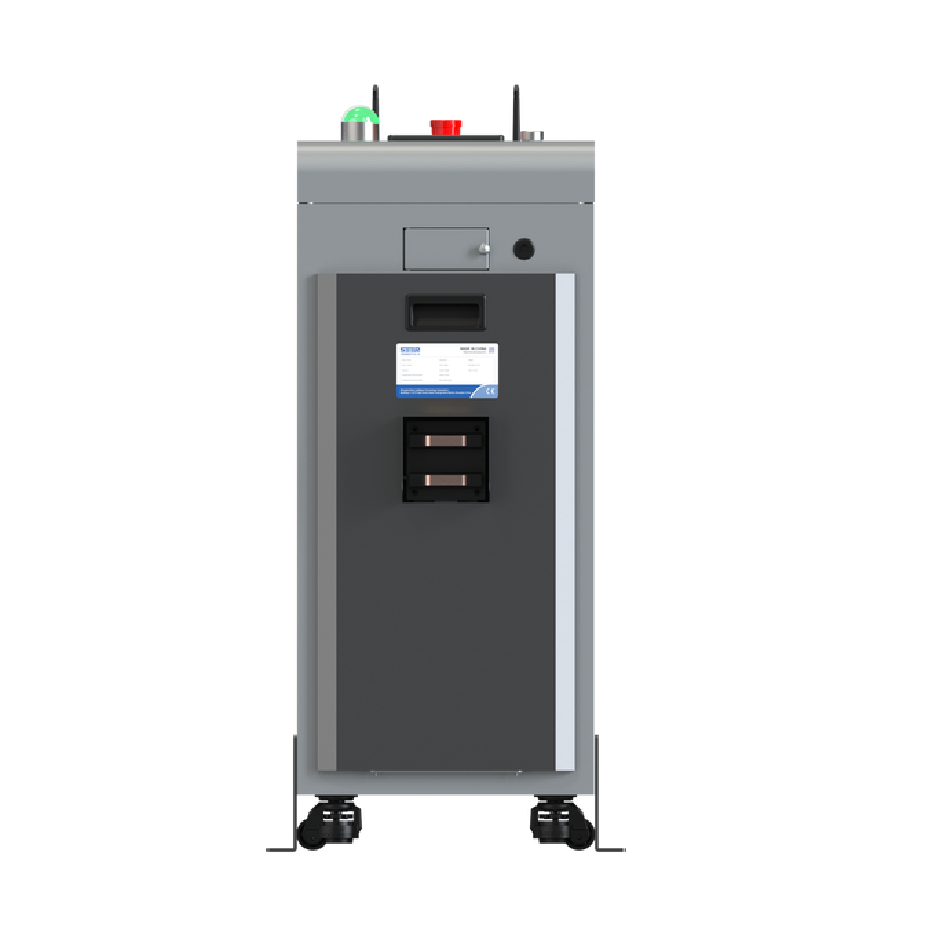

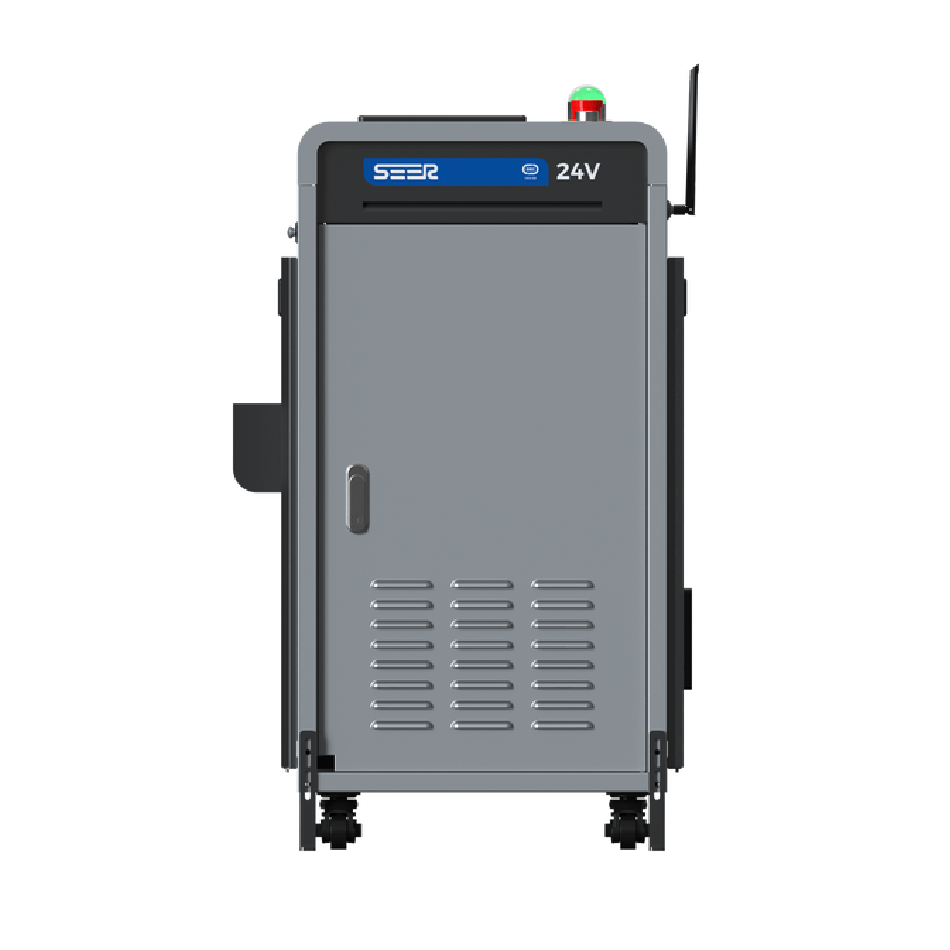

Robotic Automatic Charging Station SCS-C24100D
‹
›
Charging Station
Robotic Automatic Charging Station
CE
SCS-C24100D
Multi-functional robotic automatic charging station — efficient, hands-free fleet charging.
↓ Request datasheet (PDF)
🎯
3 kW High Power, Fast and Highly Compatible
📡
5 Layers of Protection, Safe and Reliable
🔌
Multi-Mode Charging, Adaptable and Flexible
🛡️
Comprehensive HMI, All-in-One Interaction
📦
Remote Monitoring, Worry-Free Oversight
Product parameters
📶
50 / 60
Input Frequency (Hz)
⚡
16~32
DC Output Voltage (V)
🔌
50 / 100
DC Output Current (A)
🛡️
IP20
IP Rating
⚡
32
Max. Output Voltage (V)
Full specifications
L x W x H580 x 460 x 980 mm
AC input voltage110 V to 120 V / 220 V to 240 V
Input frequency50 / 60 Hz
DC output voltage16 V to 32 V
Maximum output voltage32 V
DC output current50 / 100 A
Maximum output current50 / 100 A
Maximum output power1500 / 3000W
Weight50 kg
Connector for manual chargingREMA160
NetworkWi-Fi (recommended), Wired, 5G
Working temperature0°C to 40°C
Ambient humidity5% to 90%
Working altitude≤2000 m
Plug specificationGB 16A
Contamination level2
Overvoltage levelⅡ
Reference standardEN 62477-1:2012+A11:2014+A1:2017+A12:2021
Suitable product model24 V, autonomous forklift
Request datasheet →Get a quote
