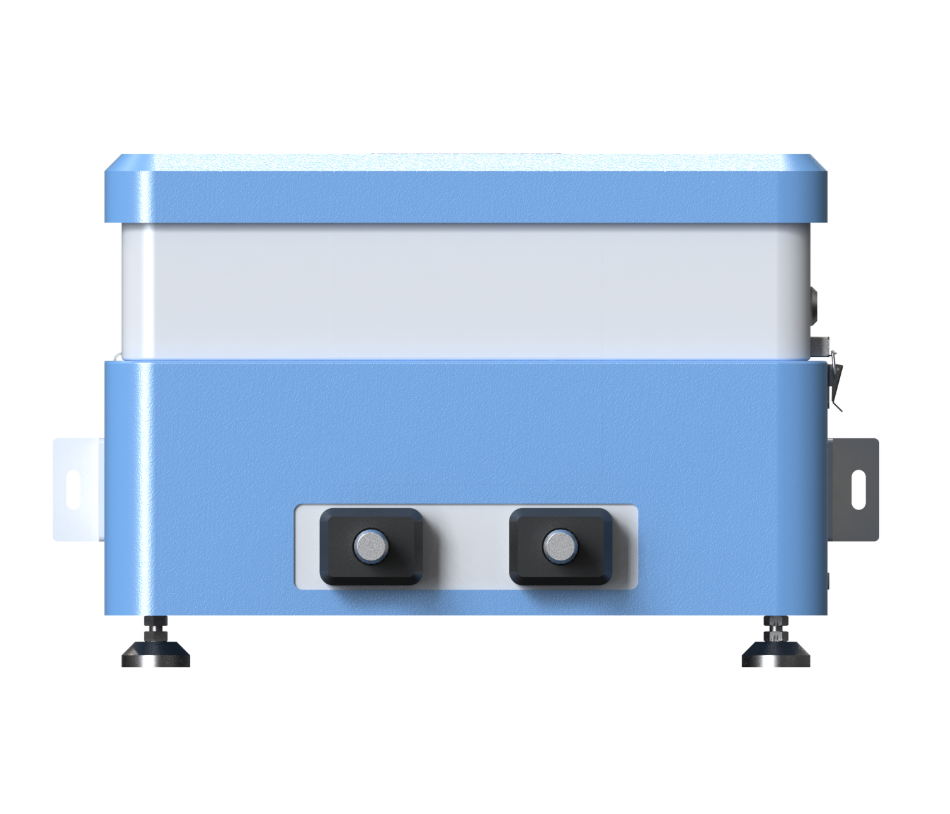

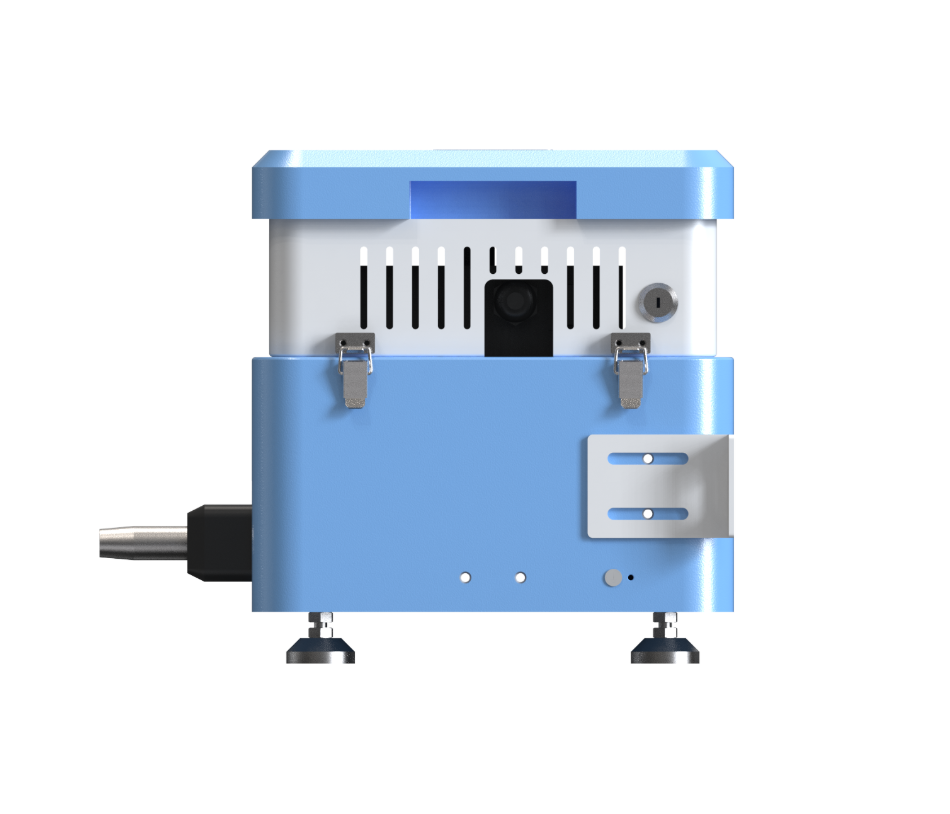

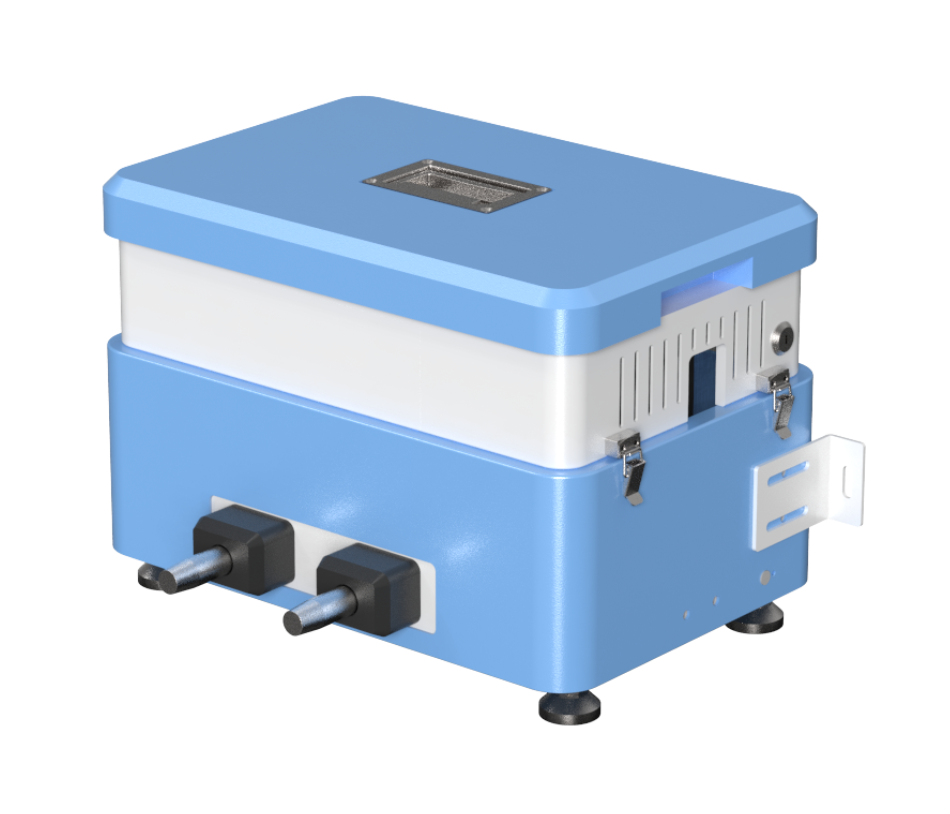

Robotic Automatic Charging Station SCS-2502
‹
›
Charging Station
Robotic Automatic Charging Station
CE
SCS-2502
Robotic automatic charging station — automated, reliable fleet charging.
↓ Request datasheet (PDF)
🎯
Automatic Charging Based on Robots from SEER Robotics
📡
Supports Manual Charging
🔌
New Industrial Design
🛡️
Intelligent Charging: Automatically adjust the power supply strategy according to the battery feedback.
Product parameters
📶
50 / 60
Input Frequency (Hz)
⚡
48
DC Output Voltage (V)
🔌
25
DC Output Current (A)
🛡️
IP20
IP Rating
⚡
54.6±0.2
Maximum Output Voltage (V)
Full specifications
L x W x H480 x 368.5 x 298.5 mm
AC input voltage220 V
Input frequency50 / 60 Hz
DC output voltage48 V
Maximum output voltage54.6±0.2 V
DC output current25 A
Maximum output current25±5% A
Maximum output power1500 W
Weight20 kg
Connector for manual chargingLP24-4P
Plug specificationGB 10A
Suitable product modelSJV series (new, 25 A)
Request datasheet →Get a quote
