Home / Accessories / Robotic Automatic Charging Station

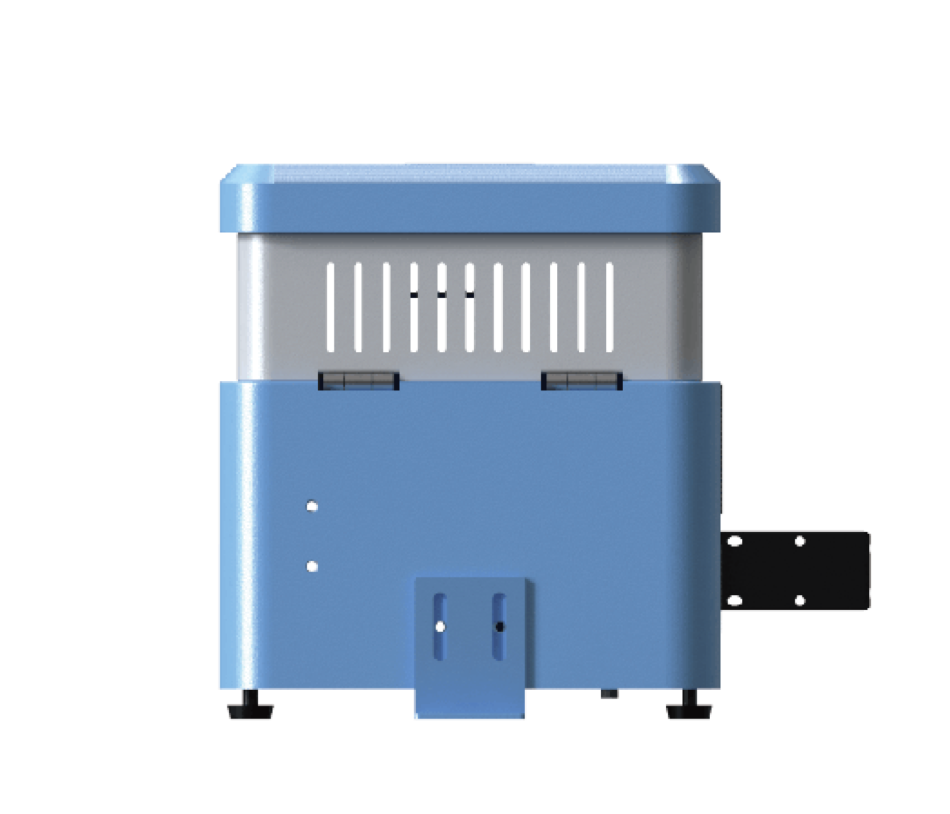

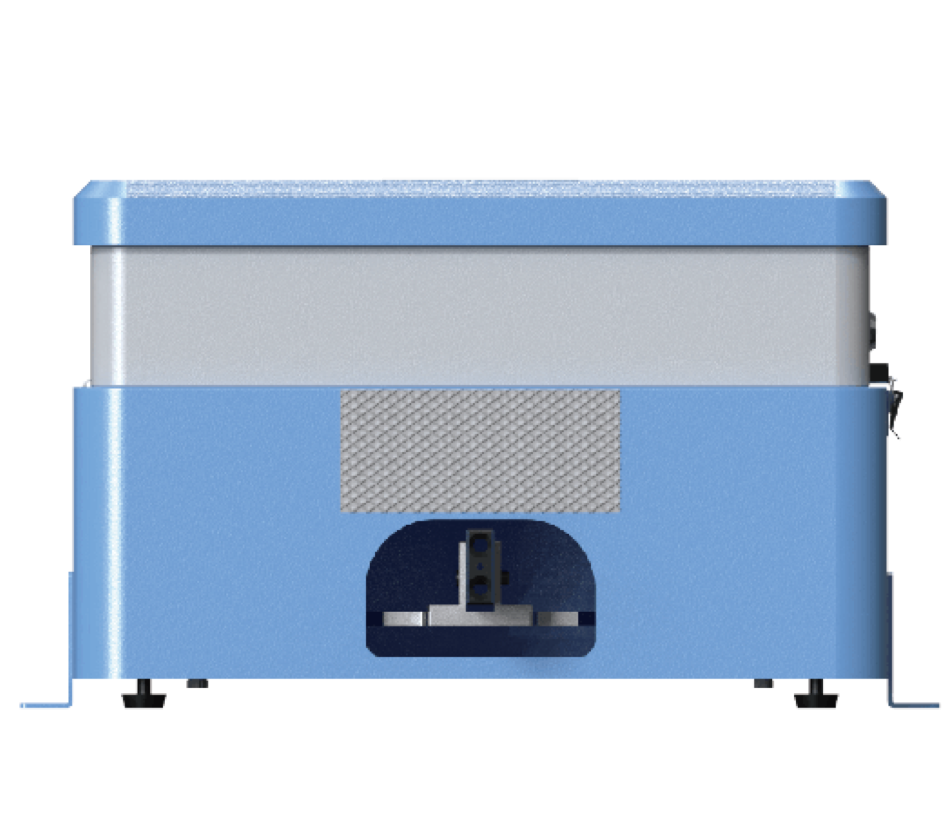

Robotic Automatic Charging Station SCS-N4815FV1-JP10
‹
›
Charging Station
Robotic Automatic Charging Station
CE
SCS-N4815FV1-JP10
Automatic charging station for robots — reliable autonomous docking and charging.
↓ Request datasheet (PDF)
🎯
Automatic Charging Based on Robots from SEER Robotics
📡
Supports Manual Charging
🔌
New Industrial Design
🛡️
Intelligent Charging: Automatically adjust the power supply strategy according to the battery feedback.
Product parameters
📶
50 / 60
Input Frequency (Hz)
⚡
48
DC Output Voltage (V)
🔌
15
DC Output Current (A)
🔌
15±5%
Max. Output Current (A)
⚡
900
Max. Output Power (W)
Full specifications
L x W x H520 x 350 x 298.5 mm
AC input voltage110 V
Input frequency50 / 60 Hz
DC output voltage48 V
Maximum output voltage54.5±0.2 V
DC output current15 A
Maximum output current15±5% A
Maximum output power900 W
Weight20 kg
Connector for manual chargingLP24-4P (equipped with adapter)
Ambient Humidity5% to 90%
Working altitude≤2000 m
Plug specificationJP 10A
Suitable product modelAMB-800K exclusive (15 A)
Request datasheet →Get a quote
