Lifting RobotsLaser SLAM Lifting Robot
AMB-300JZ
Small, Flexible and Latent Lifting

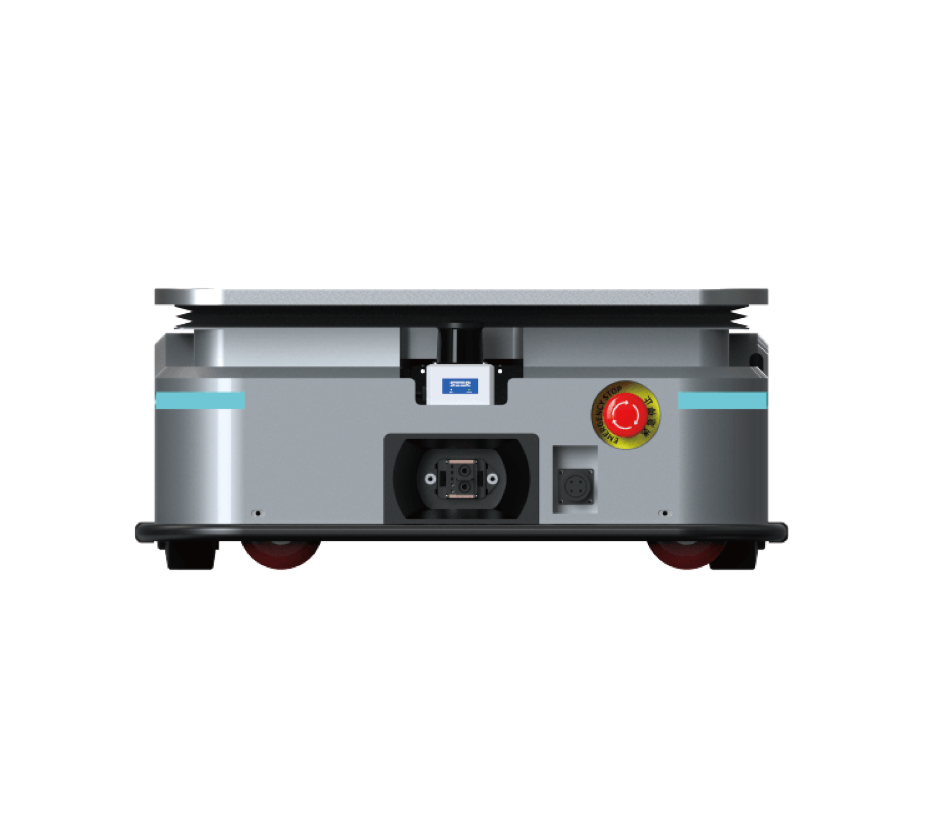

The AMB-300JZ is our compact latent lifting robot, designed for goods-to-person and shelving automation workflows. Its integrated jacking mechanism lifts mobile shelving units or custom carts directly from below, enabling fully autonomous transport without any human loading intervention. With ±5 mm precision and a 300 kg rated capacity, it excels in high-density goods-to-person picking environments.
📦
More Powerful Algorithms
⚡
Powerful Material Shelf Identification
🧭
Smaller and More Flexible
🛡️
More Secure and Efficient
🔗
New Industrial Design
Interactive 3D Model
Drag to rotate · Scroll to zoom
Product parameters
📦
300
Rated Load (kg)
📊
8
Run Time (h)
🎯
±5, ±0.5
Positioning Accuracy (mm,°)
📊
2
Lidar Number
📊
910
Rotation Diameter (mm)
⚡
≤1.5
Navigation Speed (m/s)
Full specifications
● Standard ○ Optional – None
| Basic parameters | Navigation type | Laser SLAM |
| Rotation diameter | 910 mm | |
| Maximum load capacity | 300 kg | |
| Dimensions (L x W x H) | 792 x 580 x 250 mm | |
| Weight (with battery) | 150 kg | |
| Chassis ground clearance | 25 mm | |
| Lifting platform dimensions | 760 x 545 mm | |
| Maximum lifting height | 60±2 mm | |
| Lifting time | 5±0.5 s | |
| Navigation laser scanning height | 200 mm (H1) | |
| Performance parameters | Passability (slope / step / gap) | ≤5% / 5 mm / 30 mm |
| Minimum aisle width | 720 mm | |
| Navigation position accuracy | ±5 mm | |
| Navigation angle accuracy | ±0.5° | |
| Driving speed | ≤1.5 m/s | |
| Battery parameters | Battery specifications | 48 V / 20 Ah (lithium iron phosphate) |
| Comprehensive battery life | 8 h | |
| Charging time (10% to 80%) | ≤1 h | |
| Charging method | Manual / Automatic | |
| Configurations | Lidar number | 1 (H1) +1 (C2) |
| E-stop button | ● | |
| Speaker | ● | |
| Ambient lamp | ● | |
| Bumper strip | ● | |
| Function configurations | Basic functions | ● |
| Wi-Fi roaming | ● | |
| Automatic charging | ● | |
| Shelf recognition | ● | |
| Spin function | - | |
| Precise positioning with QR code | ○ | |
| QR code navigation | ○ | |
| Laser reflector navigation | ○ |
Typical Applications
Goods-to-Person Picking
Shelving Automation
E-commerce Fulfillment
Spare Parts Logistics
Ready to automate your operation?
Our solution engineers will help you configure, test and deploy the AMB-300JZ for your specific workflow.
