Question 1

What is an automated lifting robot?

Accepted Answer

An automated lifting robot is a driverless mobile robot that slides under a shelf, rack or pallet, lifts it, and carries it across the warehouse — no operator and no fixed conveyor. FlyWei's lifting robots are the AMB and SBA series: latent-jacking and rotary-lift AMRs built for goods-to-person picking, shelf-moving, tugging and pallet transport. They navigate by SLAM laser, dock to ±5 mm, and run up to 12 hours on a charge.

Question 2

What can the AMB-300 base robot do?

Accepted Answer

The AMB-300 is a compact base robot (mobile platform) — it carries a fixed top deck or a bolt-on module and transports loads up to 300 kg autonomously, without any built-in lift or jacking mechanism. It sits in FlyWei's AMB range alongside the AMB-150 and AMB-300XS; for under-shelf jacking choose the AMB-300JZ, and for high-capacity jacking the AMB-1000JS. The AMB-300 suits goods-to-person picking and dense intralogistics layouts, with ±5 mm docking accuracy.

Question 3

What is the difference between a lifting robot and a base AMR?

Accepted Answer

A base AMR (such as the AMB-150 or SBA-400EU) is the mobile platform — it carries a fixed top deck or a bolt-on module. A lifting robot adds an active lift mechanism: latent jacking (AMB-300JZ, AMB-JS), rotary lift (SJV-SW600) or under-shelf jacking, so it can pick a load up and set it down rather than only carry it. Both share the same controller and M4/RDS fleet software, so you can run them together in one fleet.

Question 4

Can one lifting robot handle different shelves and loads?

Accepted Answer

Yes. FlyWei lifting robots use interchangeable top modules — jacking, conveyor, roller and shelf adaptors — so a single robot can move shelves, pallets, cages and totes. Payloads range from a few hundred kilograms on the AMB-300 up to 1,000 kg on the AMB-1000JS. A free UK site survey matches the right module and payload to your racking and SKUs.

Performance	Payload Capacity (AMB-1000JS)	1,000 kg
	Payload Capacity (AMB-500JS)	500 kg
	Lift Height	60±1 mm
	Max Speed (No Load)	2 m/s
	Max Speed (Loaded)	≤1.5 m/s
	Positioning Accuracy	±5 mm
	Minimum aisle width	1092 mm
Dimensions	Overall Length	1330 mm
	Overall Width	952 mm
	Overall Height	290 mm
	Rotation diameter	1460 mm
	Weight (with battery)	265 kg
	Lifting platform dimensions	1300 x 920 mm
	Jacking Range	60±1 mm
	Chassis ground clearance	30 mm
	Navigation laser scanning height	175 mm
Power & Battery	Battery Type	Lithium iron phosphate (LiFePO4)
	Battery Voltage	48V
	Battery Capacity	40Ah
	Working Hours	7 h
	Charging Mode	Auto-dock charging
Navigation & Safety	Navigation Type	Laser SLAM
	Safety Laser	2 (SICK HV)
	3D Detection	Optional 3D Camera
	Emergency Stop	360° Perimeter Detection
	Communication	Wi-Fi roaming (standard)
Certifications	EMC	●
	UN38.3	●
	MD	●
	RED	●

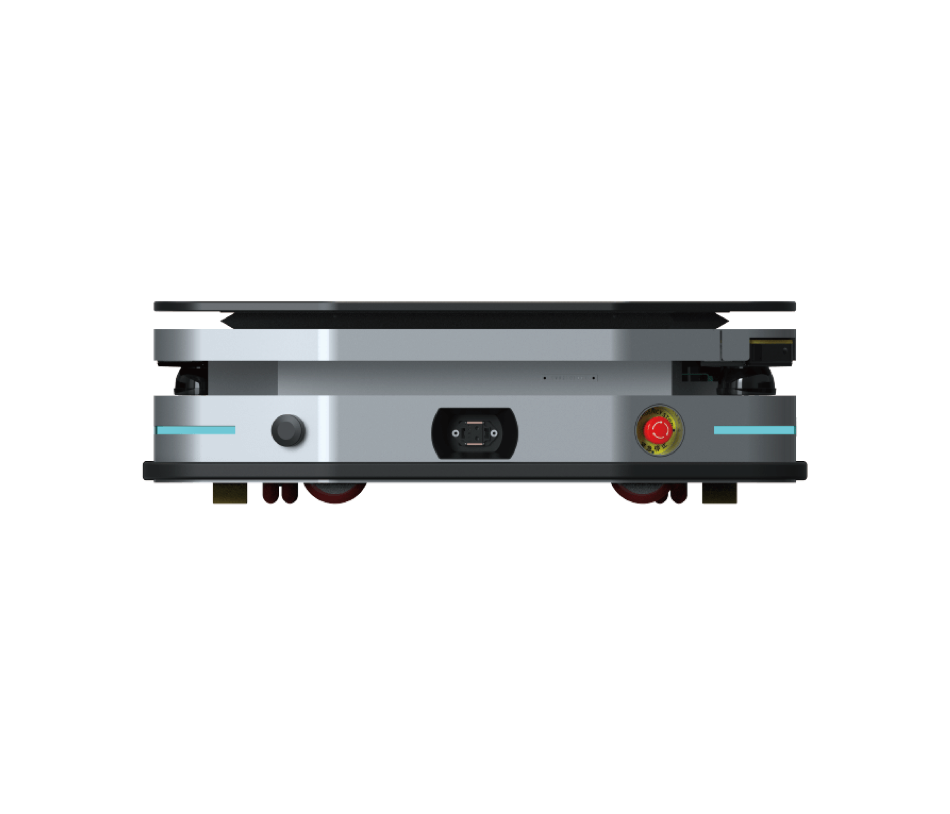

AMB-1000JS & AMB-500JS

Product parameters

Full specifications

Typical Applications
