Lifting RobotsRotary Lifting Robot

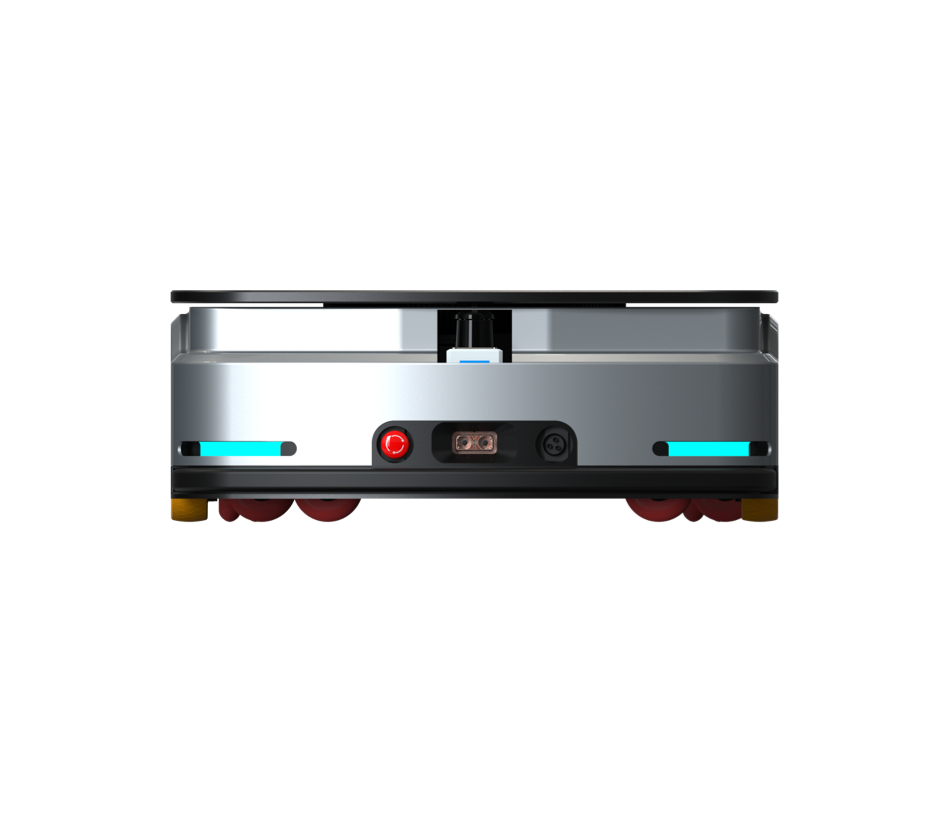

SJV-SW600
Powerful Performance, Unmatched Value for Money
The SJV-SW600 introduces rotary jacking technology to autonomous mobile robotics — after docking under a load, its platform rotates to engage and lift the cart or shelf, then rotates back for transport. This unique mechanism provides rock-solid load stability during travel and eliminates the need for precise fork alignment. With a 600 kg capacity and excellent cost-effectiveness, it offers a compelling value proposition for medium-duty lifting workflows.
Key Features
- 600 kg payload with rotary jacking mechanism
- 360° rotation for load engagement and release
- Superior load stability during transport
- No precise fork alignment required
- Best-in-class value for medium-duty lifting
- Laser SLAM navigation — no infrastructure changes
- Auto-dock charging for 24/7 operation
600 kg
Payload Capacity
Rotary Jacking
Lift Mechanism
360°
Rotation Range
2.0 m/s
Max Speed (No Load)
Technical Specifications
Performance
| Payload Capacity | 600 kg |
| Lift Mechanism | Rotary Jacking |
| Rotation Range | 360° |
| Max Speed (No Load) | 2.0 m/s |
| Max Speed (Loaded) | 1.5 m/s |
| Positioning Accuracy | ±5 mm |
Dimensions
| Overall Length | 900 mm |
| Overall Width | 800 mm |
| Overall Height | 400 mm |
| Jacking Height | 20–100 mm |
Power & Battery
| Battery Type | Lithium-ion |
| Battery Voltage | 48V |
| Battery Capacity | 60Ah |
| Working Hours | ≥12h |
| Charging Mode | Auto-dock charging |
Navigation & Safety
| Navigation Type | Laser SLAM |
| Safety Laser | 2× Safety Laser Scanner |
| 3D Detection | Front 3D Depth Camera |
| Emergency Stop | Hardware + Software |
| Communication | WiFi 802.11 a/b/g/n/ac |
| Protection Rating | IP54 |
Typical Applications
Medium-Duty Goods Transport
Shelving Automation
Manufacturing Intralogistics
Cost-Sensitive Deployments
Ready to automate your operation?
Our solution engineers will help you configure, test and deploy the SJV-SW600 for your specific workflow.
