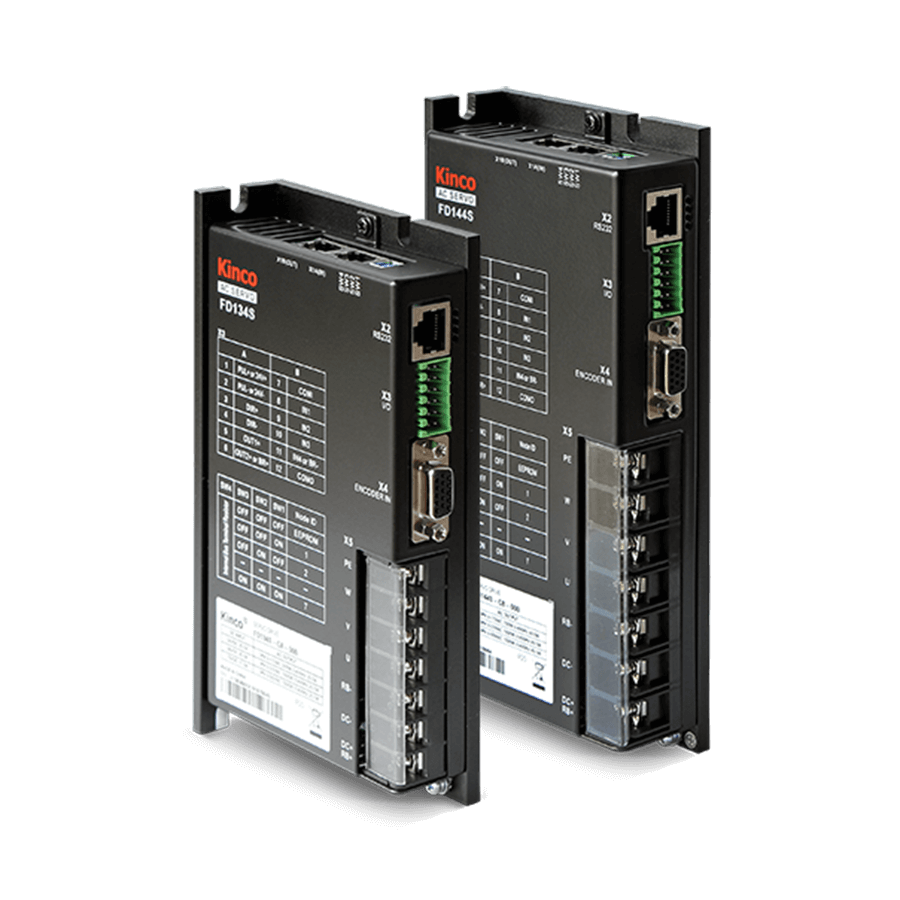

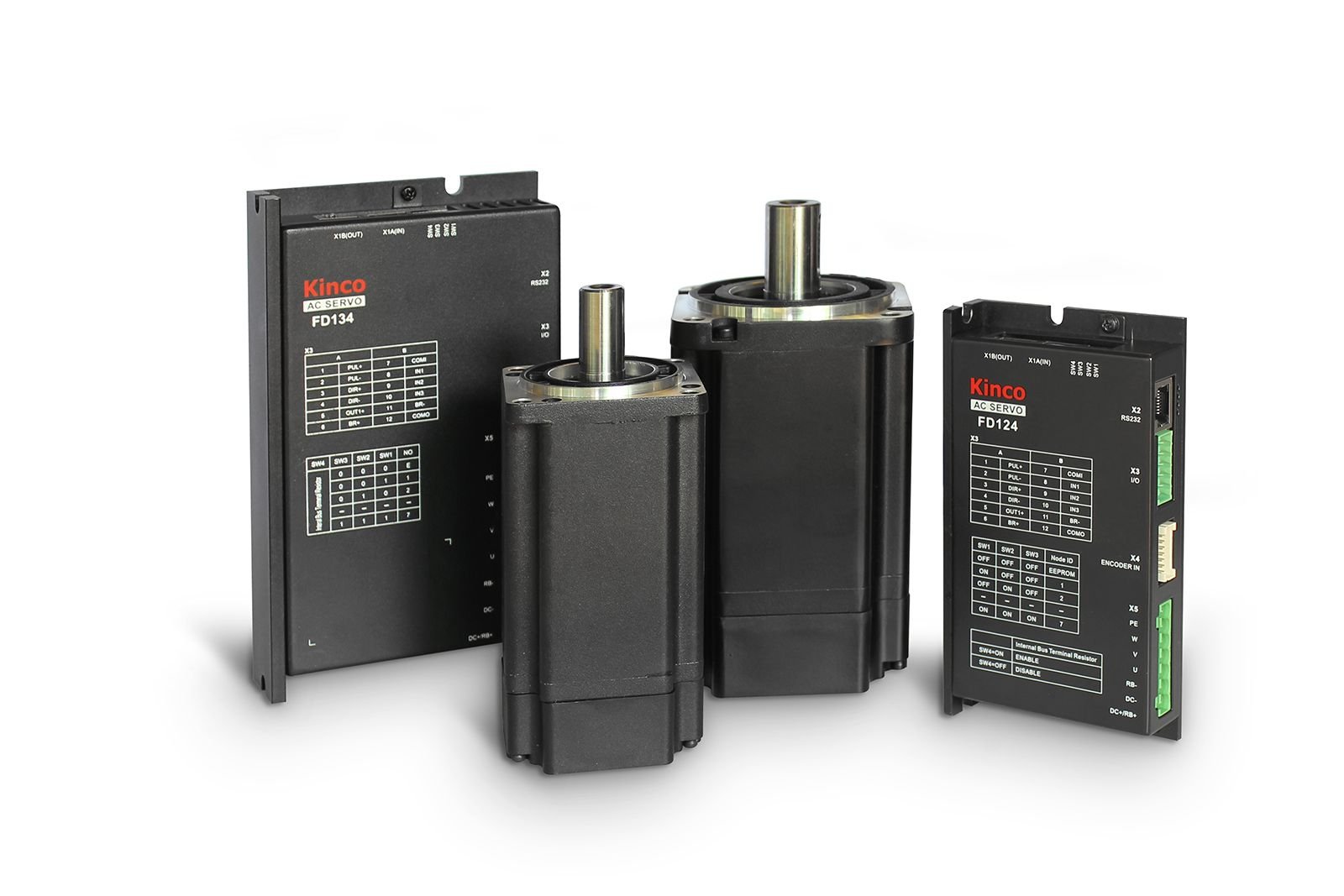

FD124S-CB-005

A low-voltage DC servo drive (24 to 70 V) with CANopen, pulse and RS232 control for 200 to 400 W AMR motors. It delivers full position, speed and torque control with integrated brake drive and broad encoder support in a compact, naturally-cooled package.

↓ Request datasheet (PDF)

🎯

24 to 70 V DC low-voltage operation

📡

CANopen + pulse + RS232 control

🔌

200 to 400 W motor range

🛡️

12 A continuous / 36 A peak

📦

Direct brake output, IP20

Full specifications

Type	Low-voltage DC servo drive, FD1x4S series (4th-generation)
Supply / operating voltage (DC)	DC 24 to 70 V
Rated / continuous output current	12 A (15 Arms with fan)
Peak output current	36 A
Applicable motor power	200 to 400 W
Control modes	Position, Speed (velocity), Torque
Communication / control interface (-CB)	RS232 + CANopen + Pulse
Pulse input	3.3 to 24 V, max frequency 500 kHz
Digital inputs	4 (IN1 to IN4); high 12.5 to 30 V DC, low 0 to 5 V DC, input freq < 1 kHz
Digital outputs	2 (OUT1, OUT2), max output current 100 mA
Brake output	Drives brake directly; brake-port output current 0.5 A
Encoder feedback (port “S”)	Three-row 15-pin (DB15); 16-bit single-turn magnetoelectric / 2500 PPR incremental / multi-turn absolute
Over-voltage alarm threshold	DC 83 V ± 2 V
Under-voltage alarm threshold	DC 18 V ± 2 V
Protection (enclosure)	IP20
Software version code	005

FD124S-CB-005
