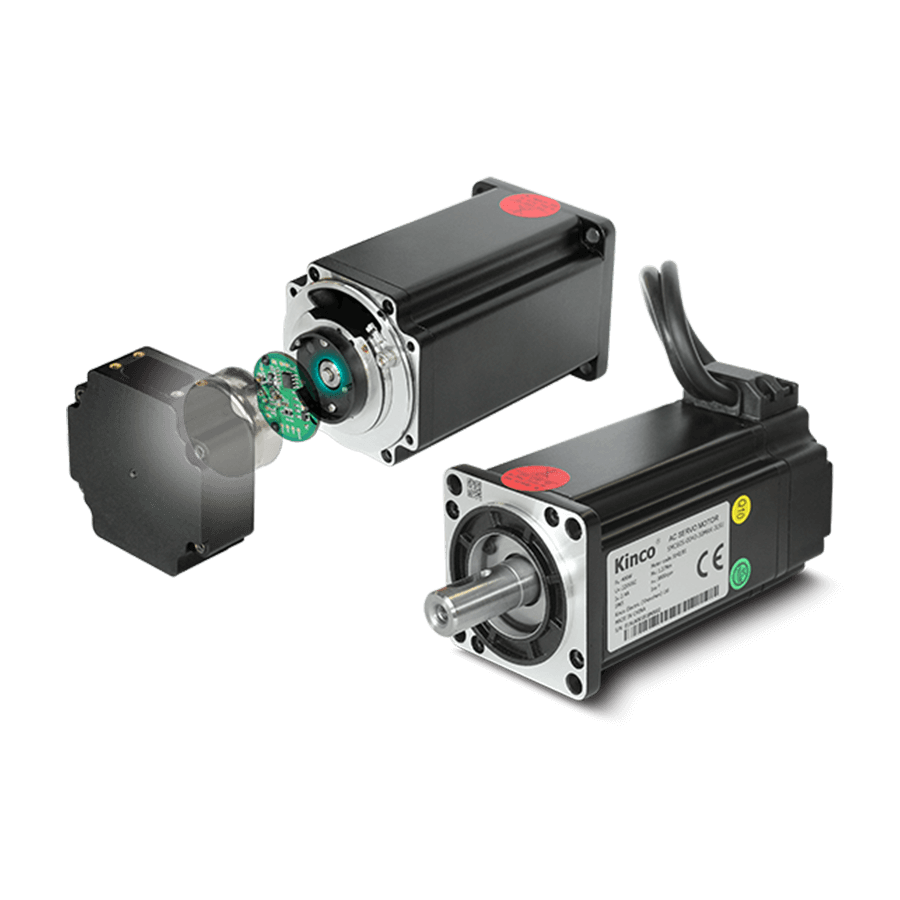

Name: Kinco SMC80S-0075-30MAK-5DSU
Brand: Kinco
SKU: SMC80S-0075-30MAK-5DSU
Availability: InStock

‹

›

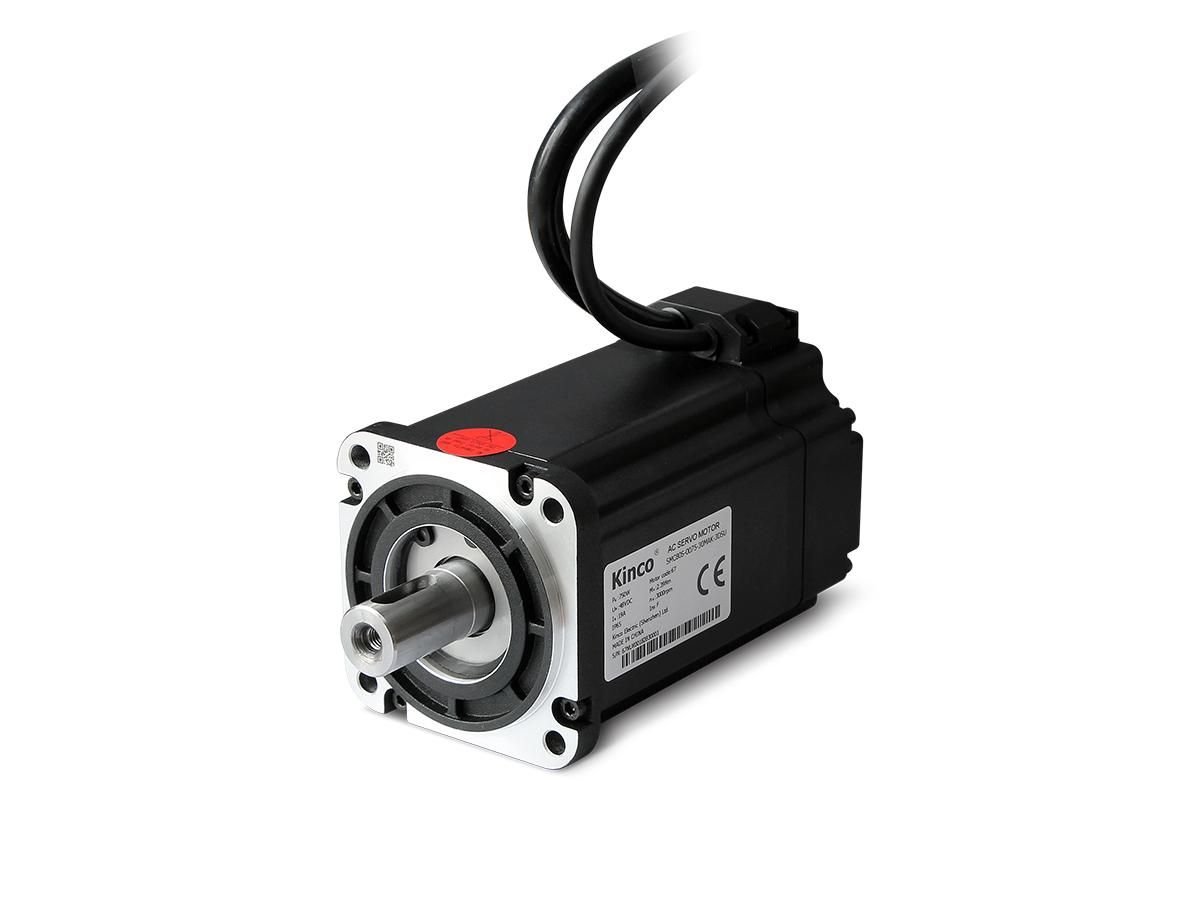

Low-voltage servo motor (80 mm)

Kinco

SMC80S-0075-30MAK-5DSU

A 750 W low-voltage brushless servo motor on an 80 mm flange, rated 3,000 rpm at 48 V DC. With a 16-bit magnetoelectric encoder and 2.39 N·m continuous (7.16 N·m peak) torque, it powers the drive wheels of FlyWei AMRs with smooth, precise motion.

↓ Request datasheet (PDF)

🎯

750 W, 80 mm flange

📡

3,000 rpm rated (3,690 rpm max)

🔌

2.39 N·m rated / 7.16 N·m peak

🛡️

16-bit magnetoelectric encoder

📦

IP65 body, insulation class F

Full specifications

Type	Low-voltage brushless servo motor, SMC80S series, small inertia
Rated power	750 W
Rated voltage (DC link)	48 V DC
Rated torque	2.39 N·m (338 oz-in)
Maximum (peak) torque	7.16 N·m (1014 oz-in)
Rated standstill torque	2.63 N·m (372 oz-in)
Rated speed	3000 rpm
Maximum speed	3690 rpm
Rated current	19 A
Maximum (peak) current	57 A
Rated standstill current	20.9 A
Torque constant Kt	18.7 oz-in/A
Flange size	80 mm (80 × 80 mm)
Number of pole pairs	3
Encoder	16-bit single-turn magnetoelectric
Insulation class	F
Protection level	IP65 body, IP54 shaft seal
Brake	No brake
Shaft	Keyed shaft
Weight	2.8 kg (6.17 lb)
Motor length	128.5 ± 1.5 mm
Max radial force	335 N
Max axial force	167.5 N
Operating temperature	–20 °C to 40 °C (non-freezing)
Cooling	Totally enclosed, non-ventilated
