Name: Kinco FD134S-CB-000
Brand: Kinco
SKU: FD134S-CB-000
Availability: InStock

‹

›

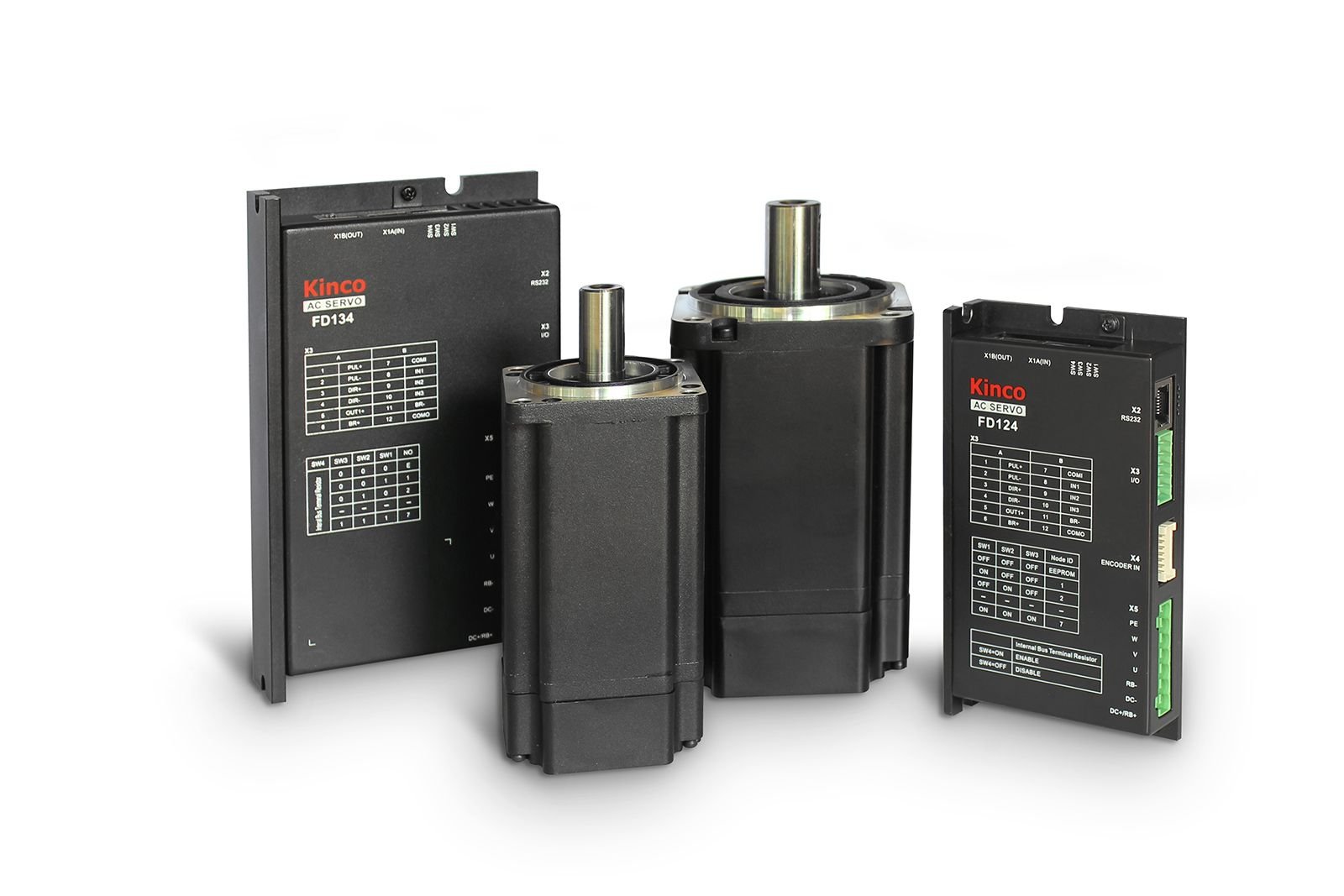

Low-voltage servo drive

Kinco

FD134S-CB-000

A compact low-voltage DC servo drive (24–70 V) with CANopen, pulse and RS232 control, driving the traction and lift motors on FlyWei AMRs. It supports position, speed and torque modes with built-in brake control and a wide range of encoder feedback options.

↓ Request datasheet (PDF)

🎯

24–70 V DC low-voltage operation

📡

CANopen + pulse + RS232 control

🔌

Position / speed / torque modes

🛡️

Up to 750 W motor capacity

📦

Direct brake output, IP20

Full specifications

Type	Low-voltage DC servo drive, FD1x4S series (4th-generation)
Supply / operating voltage (DC)	DC 24 – 70 V
Rated / continuous output current	25 Arms with fan (max 20 Arms without external heatsink)
Applicable motor power	up to 750 W
Control modes	Position, Speed (velocity), Torque
Communication / control interface (-CB)	RS232 + CANopen + Pulse
Pulse input	3.3 – 24 V, max frequency 500 kHz
Digital inputs	4 (IN1–IN4); high 12.5–30 V DC, low 0–5 V DC, input freq < 1 kHz
Digital outputs	2 (OUT1, OUT2), max output current 100 mA
Brake output	Drives brake directly; brake-port output current 0.8 A
Encoder feedback (port “S”)	Three-row 15-pin (DB15); 16-bit single-turn magnetoelectric / 2500 PPR incremental / multi-turn absolute
Over-voltage alarm threshold	DC 83 V ± 2 V
Under-voltage alarm threshold	DC 18 V ± 2 V
Protection (enclosure)	IP20
Cooling	Natural air cooling
