Name: OLEI LR-1BS2
Brand: OLEI
SKU: LR-1BS2
Availability: InStock

‹

›

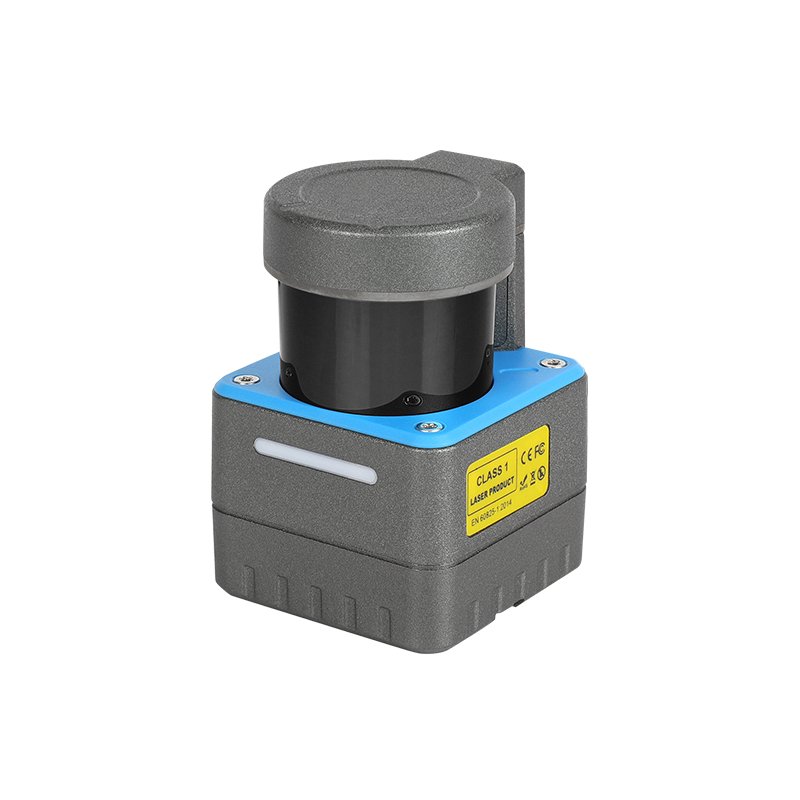

Obstacle-avoidance LiDAR (2D, 270°)

OLEI

LR-1BS2

A 2D obstacle-avoidance LiDAR with a 270° field and integrated switching I/O, giving FlyWei AMRs fast, reliable near-field detection. Lightweight and IP66-rated, it outputs a dense point cloud over Ethernet with a response time as low as 100 ms.

↓ Request datasheet (PDF)

🎯

270° obstacle-detection field

📡

4 switching inputs + 4 outputs

🔌

≥120,000 points / second

🛡️

Response time from 100 ms

📦

IP66, under 320 g

Full specifications

Type	2D 270° single-channel scanning LiDAR (obstacle avoidance)
Laser channels	1
Scanning angle	270°
Angular resolution	0.225°
Scanning frequency	10 … 25 Hz
Measurement range	0.1–2 m @1.8%; 0.1–8 m @10%; 0.1–10 m @80%
Distance resolution	1 mm
Accuracy	absolute < ±50 mm; repeat < ±20 mm
Response time	130 ms @10 Hz; 100 ms @15 Hz (max)
Point cloud rate	≥ 120,000 pts/s
Laser wavelength	905 nm
Laser class	Class I (IEC 60825-1:2014)
Interface	100 Mbps Ethernet
Switching inputs / outputs	4 / 4
Operating voltage	12 … 32 V DC
Power consumption	5 W
Degree of protection	IP66
Operating temperature	–10 … +50 °C
Storage temperature	–30 … +70 °C
Dimensions	60 × 60 × 85 mm
Weight	< 320 g
