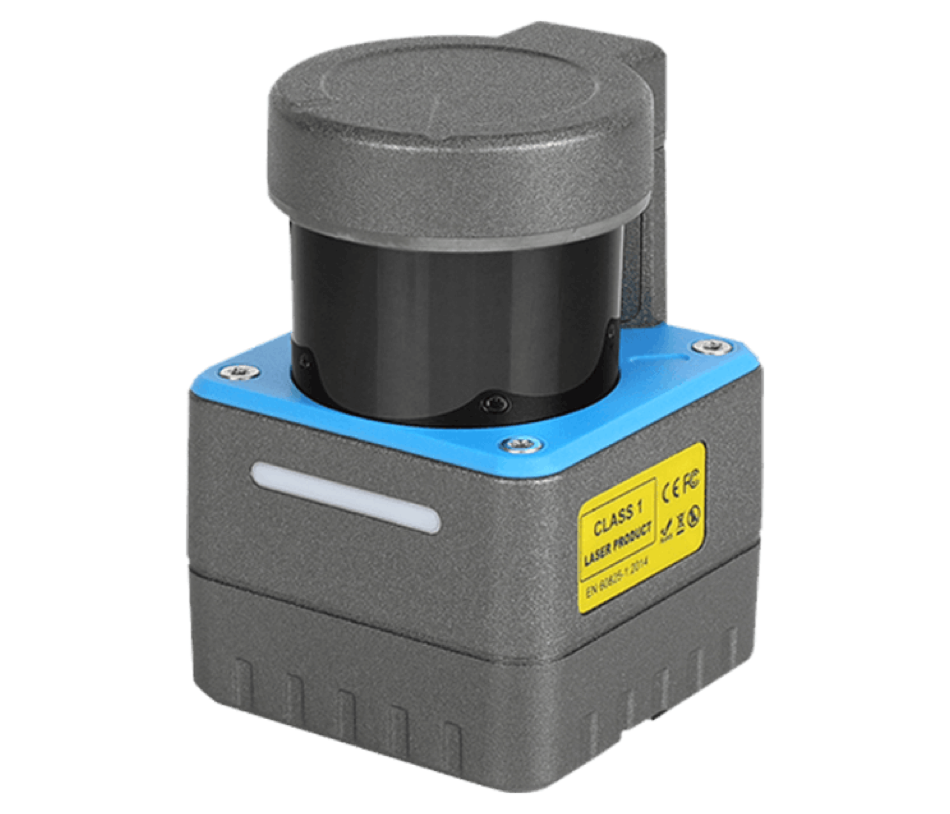

Name: OLEI LR-1BS5H
Brand: OLEI
SKU: LR-1BS5H
Availability: InStock

‹

›

Navigation LiDAR (2D, 270°)

OLEI

LR-1BS5H

A 2D time-of-flight LiDAR for AMR SLAM mapping and navigation, scanning a 270° field at up to 25 m. Compact and IP66-sealed, it streams dense point-cloud data over Ethernet to keep FlyWei robots accurately localised on the move.

↓ Request datasheet (PDF)

🎯

270° scanning field

📡

Up to 25 m range (high reflectivity)

🔌

Up to 40,000 points / second

🛡️

100 Mbps Ethernet output

📦

IP66, –10 to +50 °C

Full specifications

Type	2D 270° single-channel scanning LiDAR
Laser channels	1
Field of view (horizontal)	270°
Angular resolution (horizontal)	0.225° (fixed)
Scanning frequency	10 … 25 Hz
Measurement range	0.2–2 m @2%; 0.2–8 m @10%; 0.2–25 m @80%; 0.2–25 m (reflector)
Distance resolution	1 mm
Accuracy (common targets)	absolute < ±20 mm; repeat ≤ 20 mm
Accuracy (reflector)	absolute < ±40 mm
Horizontal angle error	±0.5°
Scanning rate (point cloud)	16K–40K pts/s (max 40K/s)
Laser wavelength	905 ± 20 nm
Laser safety level	Class 1 (IEC 60825-1:2014)
Beam divergence	longitudinal 5.8 mrad; transversal 0.58 mrad
Interface	100 Mbps Ethernet
Operating voltage	12 … 30 V DC
Power consumption (@25 °C)	5 W
Degree of protection	IP66
Operating temperature	–10 … +50 °C
Storage temperature	–30 … +70 °C
Dimensions	60 × 60 × 85 mm
Weight	450 g
