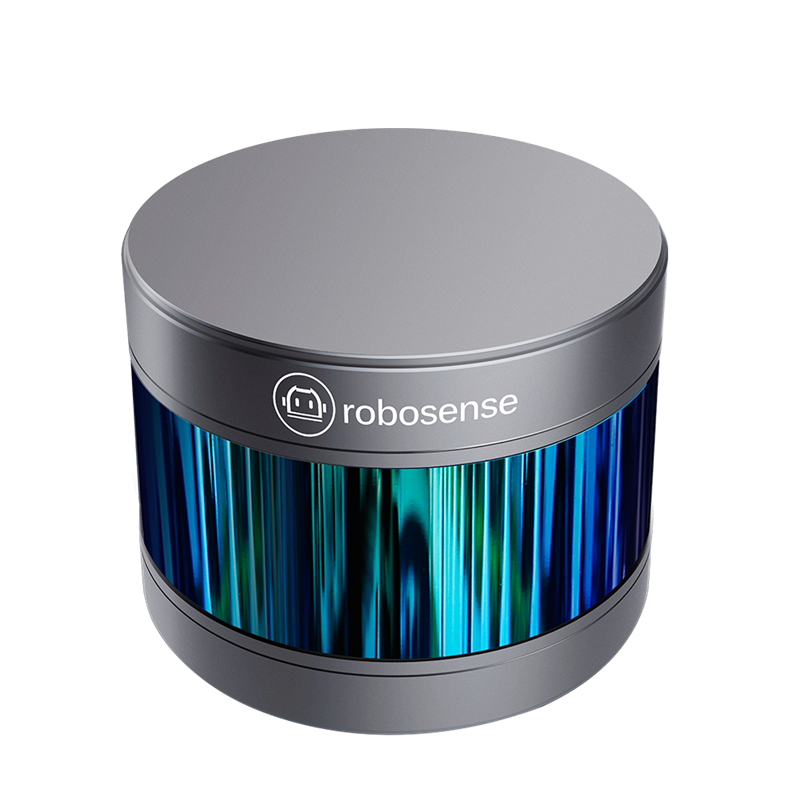

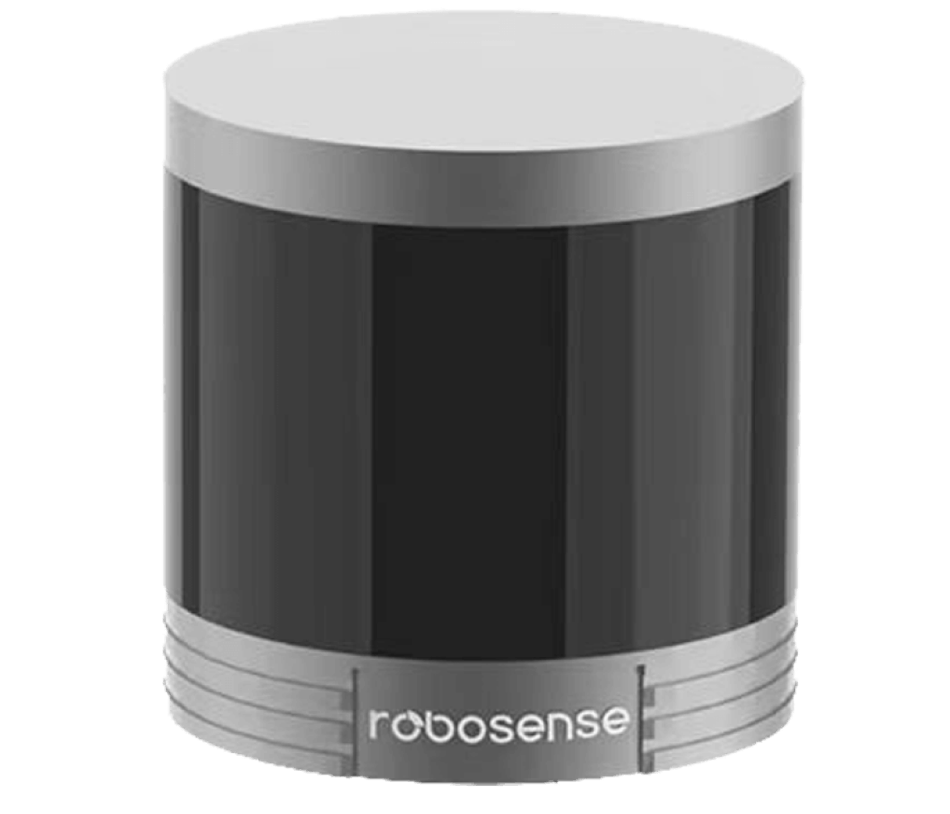

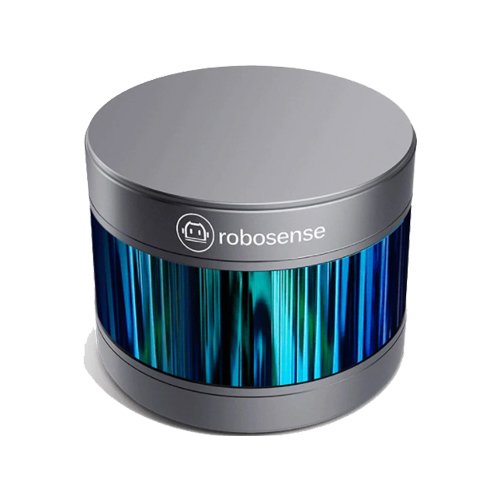

Name: RoboSense RS-LiDAR-16
Brand: RoboSense
SKU: RS-LiDAR-16
Availability: InStock

‹

›

3D LiDAR (16-channel)

RoboSense

RS-LiDAR-16

A 16-channel mechanical 3D LiDAR delivering 360° horizontal and 30° vertical coverage at up to 150 m. With 320,000 points per second and ±2 cm accuracy, it gives FlyWei robots rich volumetric perception for mapping, localisation and obstacle detection in complex spaces.

↓ Request datasheet (PDF)

🎯

16 laser channels, 360° × 30° field

📡

Up to 150 m range, ±2 cm accuracy

🔌

320,000 points per second

🛡️

IP67 sealed, 9 W typical

📦

100 Mbps Ethernet (UDP) output

Full specifications

Laser channels (beams)	16
Measurement principle	Time of Flight
Measurement range	20 cm – 150 m (on 20% reflectivity target)
Range accuracy	±2 cm (typical)
Field of view (horizontal)	360°
Field of view (vertical)	+15.0° to –15.0° (30° total)
Angular resolution (horizontal)	0.09° (5 Hz) – 0.36° (20 Hz)
Angular resolution (vertical)	2.0°
Rotation rate	300 / 600 / 1200 rpm (5 / 10 / 20 Hz)
Data rate	320,000 points / second
Wavelength	905 nm
Laser class	Class 1
Beam divergence	horizontal 3.0 mrad; vertical 1.2 mrad
Data interface	100 Mbps Ethernet, UDP (distance, azimuth, calibrated reflectivity, synchronised 1 µs timestamp)
Operating voltage	9 – 32 V DC (12 V DC with interface box)
Power consumption	9 W (typical)
Protection level	IP67
Operating temperature	–10 °C to +60 °C
Dimensions	Φ109 mm × 82.7 mm (diameter × height)
Weight	0.84 kg (without cable)
