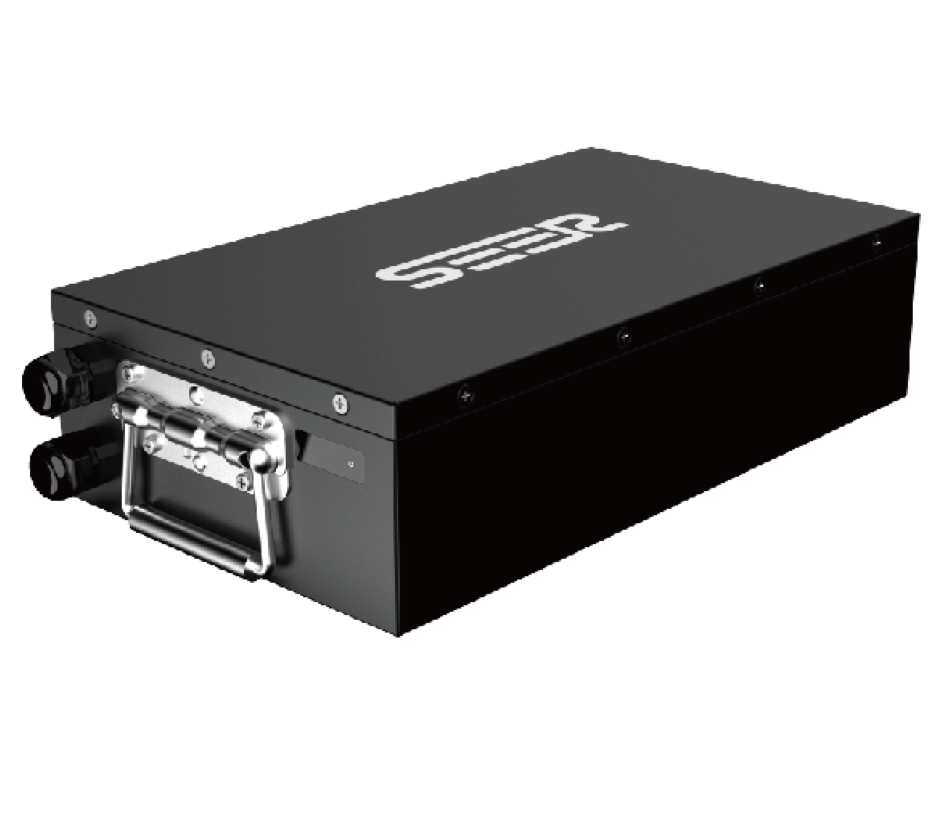

SEER Robotics Modular Battery SBP-48V23AHLS
‹
›
Battery
SEER Robotics Modular Battery
CEFCC
SBP-48V23AHLS
Modular robot battery with automatic paralleling — plug-and-play power for autonomous robots.
↓ Request datasheet (PDF)
🎯
On-demand Combination, Up to 5 Battery Packs in Parallel
📡
Global Certification & Great Variety of Goods
🔌
Million Dollar Insurance for Worry-free After-sales
Product parameters
🔋
23
Battery Capacity (Ah)
🔄
2000
Cycle Life (times)
🌡️
-20~60
Working Temperature (℃)
🔋
Lithium Iron Phosphate
Battery Type
🔋
5
Max Num of Connected Battery (pcs)
Full specifications
L x W x H380 x 220 x 100 mm (without connector)
Nominal voltage51.2 V
Nominal capacity23 Ah
Limited charge voltage58.4 V
Nominal Weight13 kg
Cell materialLithium iron phosphate
Cycle life2000 times ≥80%
Max. num of connected battery5 pcs
ProtocolCANOPEN
CertificationsUL\CE\FCC\EN13849
Discharge temperature-20°C to 60°C
Charge temperature0°C to 45°C
Maximum charge current23A
Maximum discharge current30 A < 5 s
Shipment battery level40% to 60%
Request datasheet →Get a quote
