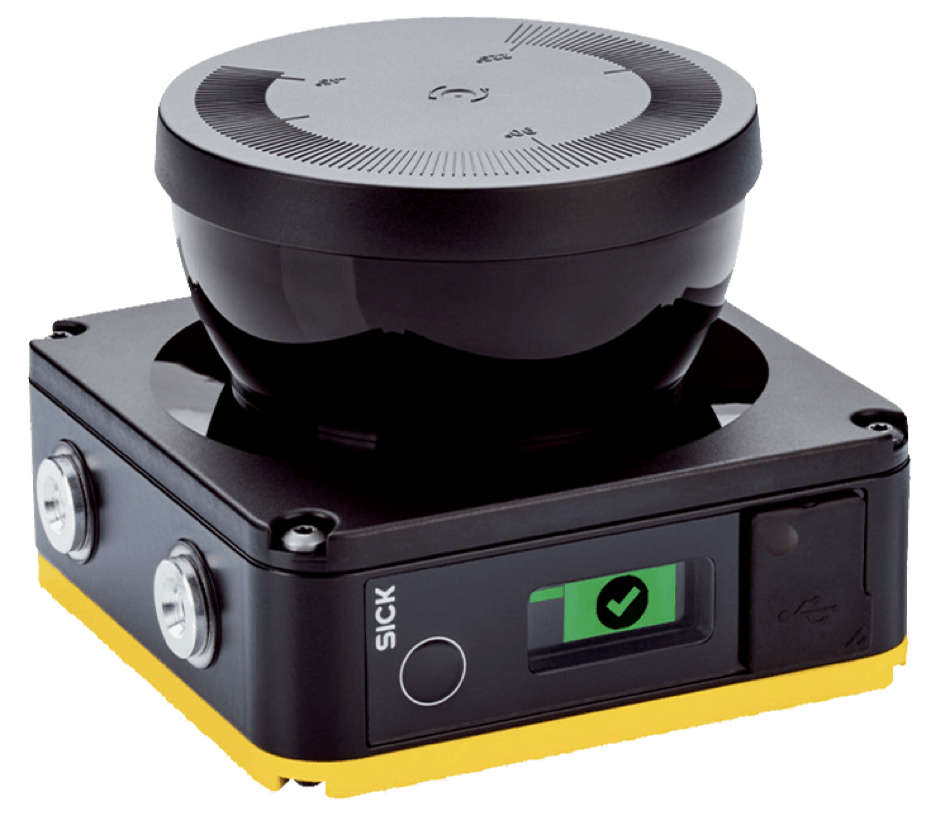

Name: SICK nanoScan3 Core I/O
Brand: SICK
SKU: nanoScan3 Core I/O
Availability: InStock

‹

›

Safety laser scanner

SICK

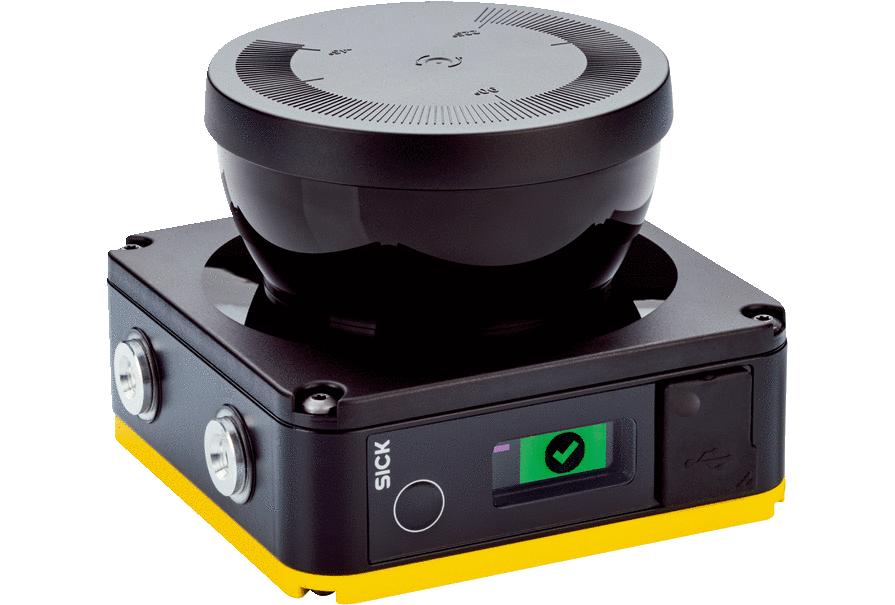

nanoScan3 Core I/O

A compact 2D safety laser scanner that protects FlyWei AMRs and the people working alongside them. It continuously monitors configurable protective and warning fields across a 275° aperture and triggers a safe stop the instant someone enters the danger zone — certified to Type 3 / SIL 2 / PL d.

↓ Request datasheet (PDF)

🎯

275° protective field for all-round coverage

📡

Certified Type 3 / SIL 2 / PL d (Cat. 3)

🔌

Up to 3 m protective + 10 m warning fields

🛡️

8 fields with 2 switchable monitoring cases

📦

Compact aluminium housing, IP65

Full specifications

Product version	nanoScan3 Core I/O
Type designation / part no.	NANS3-AAAZ30AN1 / 1100333
Type (IEC 61496)	Type 3
Safety integrity level (IEC 61508)	SIL 2
Category (EN ISO 13849)	Category 3
Performance level (EN ISO 13849)	PL d
PFHd (mean prob. dangerous failure/hour)	8.0 × 10⁻⁸
TM (mission time)	20 years
Scanning angle (aperture angle)	275°
Protective field range	3 m
Warning field range	10 m
Distance measuring range	40 m
Angular resolution	0.17°
Response time	70 ms
Object resolution (configurable)	20 / 30 / 40 / 50 / 60 / 70 / 150 / 200 mm
Protective field supplement	65 mm
Number of fields	8
Number of simultaneously monitored fields	≤ 4
Number of monitoring cases	2
Type of light / wavelength	Pulsed laser diode / 905 nm
Laser class	Class 1 (IEC 60825-1)
Enclosure rating	IP65 (IEC 60529)
Ambient light immunity	≤ 40 klx (IEC 61496-3)
Supply voltage Vs	24 V DC (16.8 … 30 V DC)
Power consumption (typical)	3.9 W (without output load)
Universal I/Os	3 (freely programmable)
OSSD pairs	1
Configuration / diagnostics interface	USB 2.0, micro USB
Measured data output	Via Ethernet

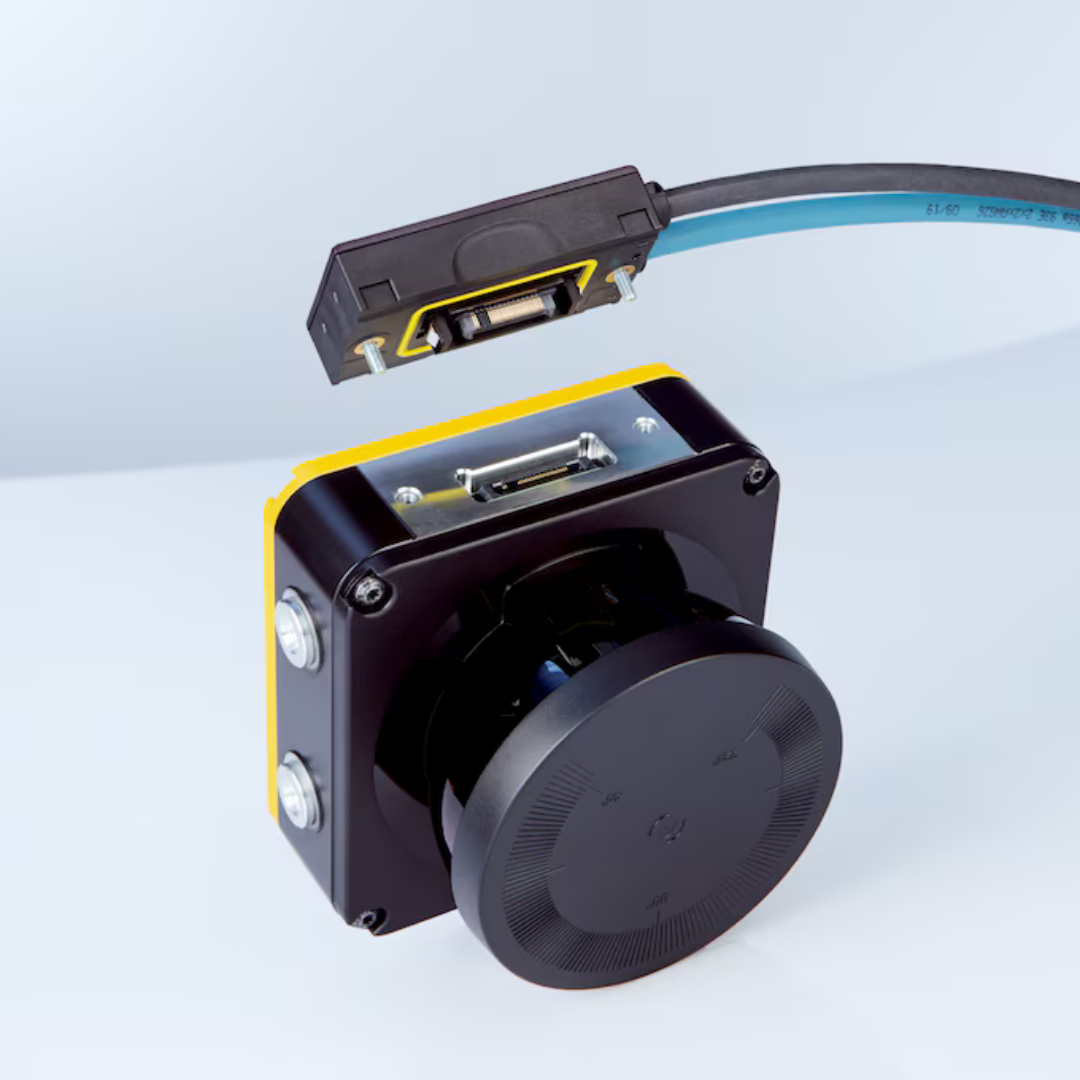

Dimensions (W × H × D)	106.6 mm × 80 mm × 117.5 mm (incl. system plug)
Weight	0.67 kg
Housing material	Aluminium
Ambient operating temperature	–10 °C … +50 °C
Storage temperature	–25 °C … +70 °C
