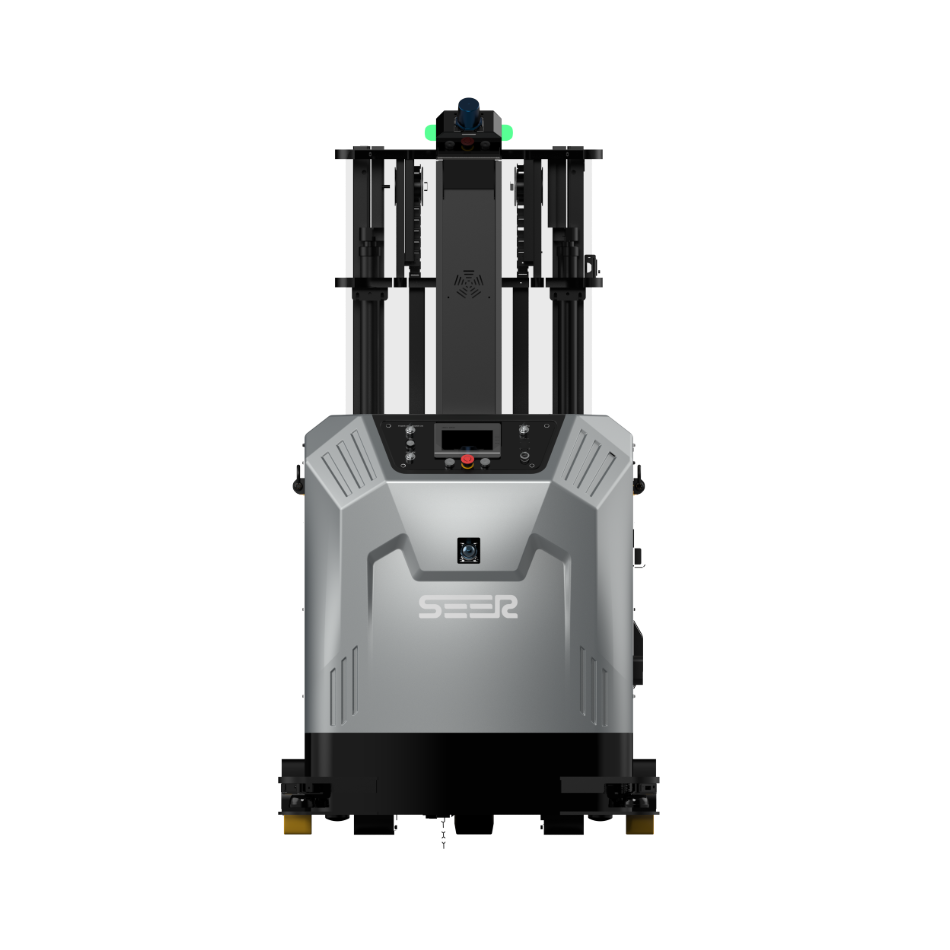

SCB-2000EU
CE Certification, Superb Load Capacity, Flexible Expansion
The SCB-2000EU is the premium CE-certified autonomous counterbalanced forklift for European markets. Its modular architecture allows flexible expansion — adding optional sensors, camera systems, and attachment interfaces for specialised loads. With 2,000 kg capacity and a robust safety suite, it is the preferred choice for European distribution and manufacturing facilities requiring certified automation.
Interactive 3D Model
Drag to rotate · Scroll to zoom
Product parameters
Full specifications
| Basic parameters | Operation type | Automatic navigation |
| Navigation type | Laser SLAM | |
| Pallet type | Open pallet / closed pallet | |
| Rated load capacity | 2000 kg (4409.24 lb) | |
| Load center distance | 500 mm (19.69 in) | |
| Weight (with battery) | 3230 / 3410 kg (7117.92 / 7517.56 lb) | |
| Standard lifting height | 3000 / 4000 mm (118.11 / 157.48 in) | |
| Forklift dimensions: L x W x H | 2839 x 1161x2095 / 2851 x 1161 x2105mm (111.77 x 45.71 x 82.48 / 112.24 x 45.71 x 82.87 in) | |
| Fork dimensions: L x W x H | 1220 x 133 x 40 mm (48.03 x 5.24 x 1.57 in) | |
| Fork outer width | 400 mm to 700 mm (15.75 to 27.56 in) | |
| Right-angle stacking aisle width, pallet 1000×1200 (1200 placed along the fork) | 2997+200 / 3009+200 mm (117.99+7.87 / 118.46+7.87 in) | |
| Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork) | 2985+200 / 2997+200 mm (117.52+7.87 / 117.99+7.87 in) | |
| Right-angle stacking aisle width, pallet 1000×1000 (1000 placed along the fork) | 2985+200 / 2997+200 mm (117.52+7.87 / 117.99+7.87 in) | |
| Minimum turning radius | 1585 mm (62.40 in) | |
| Ambient temperature and humidity range | TEMP:0°C to 50°C / RH: 10% to 90%, no compression, no condensation (TEMP: 32F to 122F / RH: 10% to 90%, no compression, no condensation) | |
| Performance parameters | Driving speed: full load / no load | 1.0 / 1.5 m/s (3.28 / 4.92 ft/s) |
| Passability (slope / step / gap) | <5% / 10 mm / 30 mm (<5% / 0.39 in / 1.18 in) | |
| Navigation position accuracy | ±10 mm (± 0.39 in) | |
| Navigation angle accuracy | ± 1° | |
| Battery parameters | Battery specifications | 48 V / 315 Ah (lithium iron phosphate) |
| Comprehensive battery life | 12 h to 15 h | |
| Charging time (10% to 80%) | 3 h to 5 h | |
| Charging method | Manual / Automatic | |
| Function configurations | Lidar number | 1 (SLM-SLE4248 +3 (SICK HV) or 1 (SLM-SLE4248) +2 (SICK HV) +1 (SLD40) |
| Wi-Fi roaming | ● | |
| 3D obstacle avoidance | ● | |
| Pallet recognition | ● | |
| Cage stack | ○ | |
| High shelf pallet recognition | ○ | |
| Pallet stack | ○ | |
| HMI display | ● | |
| Safety configurations | E-stop button | ● |
| Sound and light indicator | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm (≤11.81 in / ≤19.69 in) | |
| 360° laser protection | ● | |
| Bumper strip | - | |
| Fork height protection | ● | |
| Certifications | ISO 3691-4 | ● |
| EMC | ● | |
| UN38.3 | ● | |
| RED | ● |
