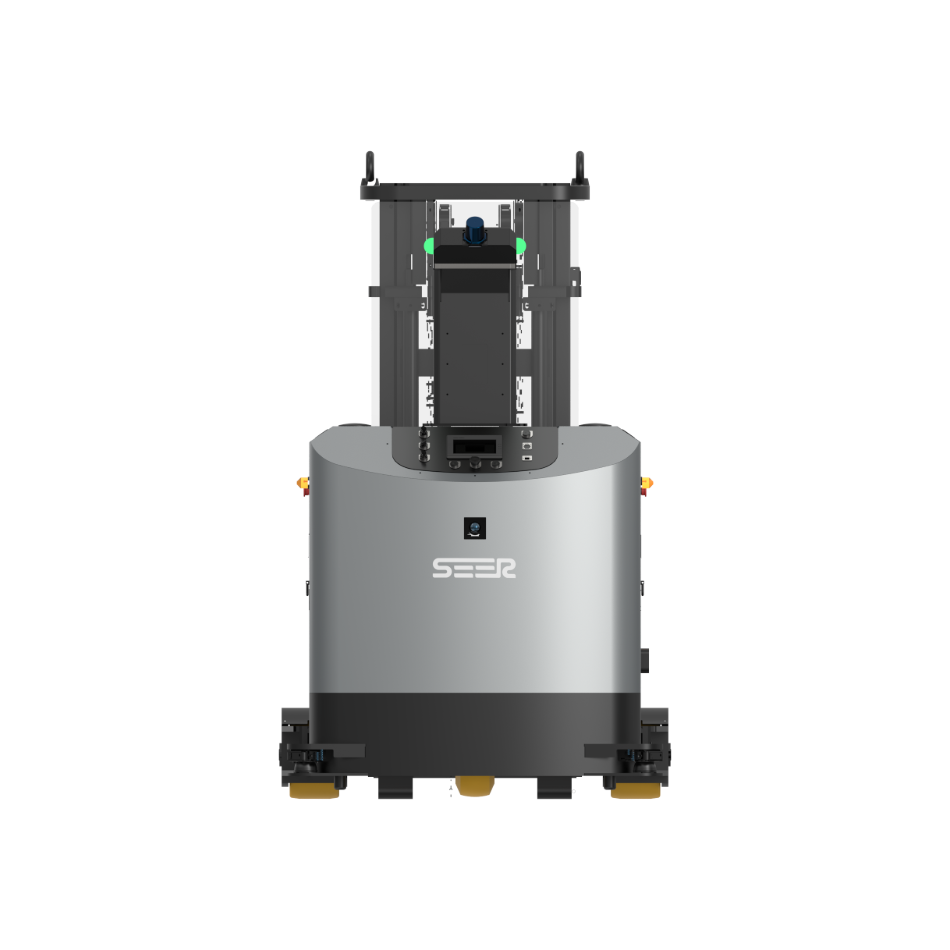

SCB-3000EU
CECertified
CounterbalancedCounterbalanced Forklift

SCB-3000EU

Safety Protection, High Cost-Effectiveness

The SCB-3000EU delivers exceptional value in the heavy-duty autonomous forklift segment. With 3,000 kg capacity, full CE certification, and a cost-effective design that does not compromise on safety, it offers European facilities a compelling ROI case for automation. Comprehensive safety protection including laser scanners and 3D obstacle avoidance ensures CE-compliant operation at all times.

📦
CE Certification, Safety Guaranteed
AI Carrier Recognition, Highly Precise and Efficient
🧭
12-hour Long Endurance
🛡️
360° Scanning Range, Multi-layer Safety Protection
🔗
360° Laser Protection, Safe Stacking
🔋
3 T Intelligent High Load Capacity, Multiple Flexible Customizations

Interactive 3D Model

Drag to rotate · Scroll to zoom

Product parameters

📦
3000
Rated Load Capacity (kg)
🔋
10~12
Comprehensive Battery Life (h)
📏
3000 / 3500
Standard Lifting Height (mm)
🔄
1859
Minimum Turning Radius (mm)
🎯
±10,±1
Positioning Accuracy (mm,°)
📦
1.0 / 1.5
Driving Speed (Full load / No load) (m/s)

Full specifications

● Standard    ○ Optional    – None
Basic parametersOperation typeAutomatic navigation
Navigation typeLaser SLAM
Pallet typeOpen pallet / closed pallet
Rated load capacity3000 kg (6613.86 lb)
Load center distance500 mm (19.69 in)
Weight (with battery)4970 / 5030 kg (10956.96 / 11089.24 lb)
Standard lifting height3000 / 3500 mm (118.11 / 137.80 in)
Forklift dimensions: L x W x H3222 x 1420 x 2228 / 3302 x 1420 x 2478 mm (126.85 x 55.91 x 87.71 / 130.00 x 55.91 x 97.56 in)
Fork dimensions: L x W x H1220 x 135 x 45 mm (48.03 x 5.31 x 1.77 in)
Fork outer width450 mm to 750 mm (17.72 to 29.53 in)
Right-angle stacking aisle width, pallet 1000×1200 (1200 placed along the fork)3348+200 / 3417+200 mm (131.81+7.87 / 134.53+7.87 in)
Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork)3339+200 / 3417+200 mm (131.46+7.87 / 134.53+7.87 in)
Right-angle stacking aisle width, pallet 1000×1000 (1000 placed along the fork)3339+200 / 3417+200 mm (131.46+7.87 / 134.53+7.87 in)
Minimum turning radius1859 mm (73.19 in)
Ambient temperature and humidity rangeTEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation (TEMP: 32F to 122F / RH: 10% to 90%, no compression, no condensation)
Performance parametersDriving speed: full load / no load1.0 / 1.5 m/s (3.28 / 4.92 ft/s)
Passability (slope / step / gap)<3% / 10 mm / 30 mm (<3% / 0.39 in / 1.18 in)
Navigation position accuracy±10 mm (±0.39 in)
Navigation angle accuracy±1°
Battery parametersBattery specifications48 V / 315 Ah (lithium iron phosphate)
Comprehensive battery life10 h to 12 h
Charging time (10% to 80%)3 h to 5 h
Charging methodManual / Automatic
Function configurationsLidar number1 (SLM-SLE4248) +3 (SICK HV) or 1 (SLM-SLE4248) +2 (SICK HV)
Wi-Fi roaming
3D obstacle avoidance
Pallet recognition
Cage stack
High shelf pallet recognition
Pallet stack
HMI display
Safety configurationsE-stop button
Sound and light indicator
Braking distance: 1 m/s / 1.5 m/s≤30 cm / ≤50 cm (≤11.81 in / ≤19.69 in)
360° laser protection
Bumper strip-
Fork height protection
CertificationsISO 3691-4
EMC
UN38.3
RED
Dimensions (mm)
SCB-3000EU dimensioned drawing (mm)

Typical Applications

Heavy Goods Warehouses
Industrial Logistics
Port & Terminal Operations
