Stacker ForkliftsAutonomous Forklift

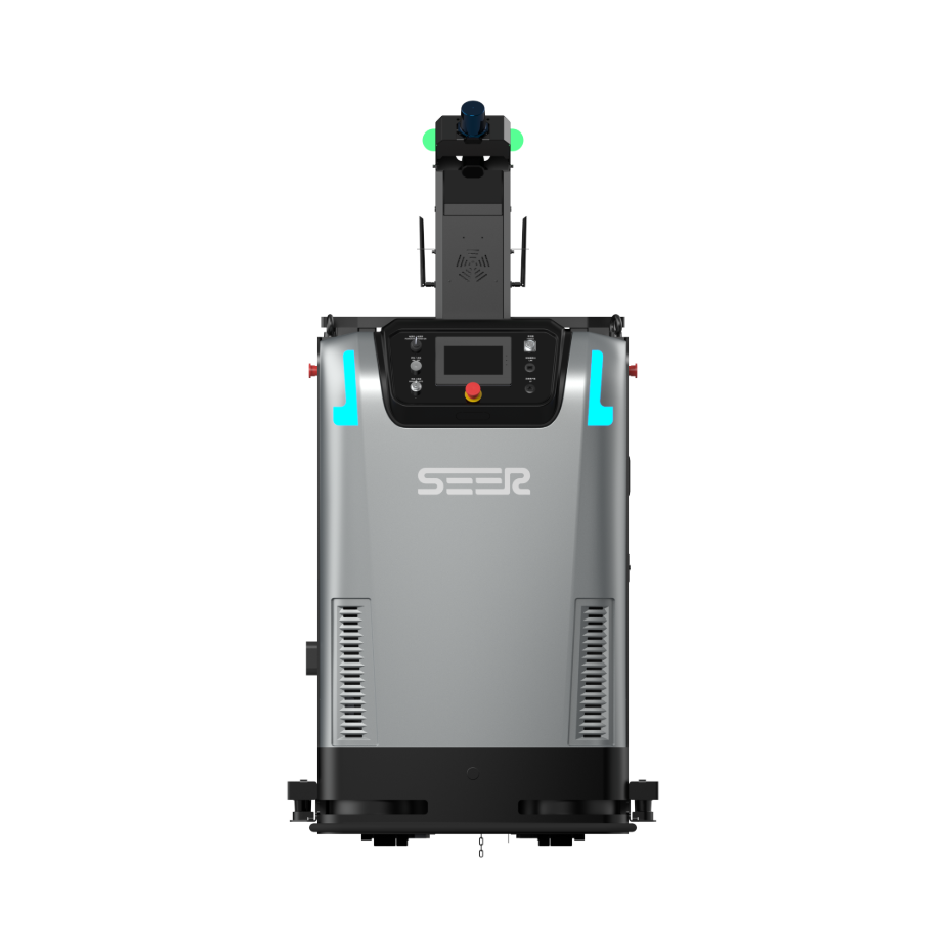

SOS-1000
Compact in Size, yet Capable of 1 T Load
The SOS-1000 challenges conventional trade-offs between size and capability. This compact autonomous stacker delivers a remarkable 1,000 kg rated capacity in a body small enough to operate in spaces where full-size stackers cannot go. Ideal for operations that require both flexibility and lifting power in constrained environments.
📦
1 T Load Capacity, Agile Maneuvering in Narrow Aisles
⚡
Space-saving, Efficiency Enhancement
🧭
High Precision, Multi-directional Obstacle Avoidance
🛡️
Flexible Routing, Omnidirectional Lateral Movement
🔗
Customizable Options, Multiple Selections Available
Interactive 3D Model
Drag to rotate · Scroll to zoom
Product parameters
📦
1000
Rated Load Capacity (kg)
🔋
10-12
Comprehensive Battery Life (h)
📏
1600
Standard Lifting Height (mm)
🔄
1445
Minimum Turning Radius (mm)
🎯
±10, ±1
Positioning Accuracy (mm,°)
📦
1.0 / 1.5
Driving Speed (Full load / No load) (m/s)
Full specifications
● Standard ○ Optional – None
| Basic parameters | Operation type | Automatic navigation |
| Navigation type | Laser SLAM | |
| Pallet type | Open Pallet | |
| Rated load capacity | 1000 kg | |
| Load center distance | 600 mm | |
| Weight (with battery) | 800 kg | |
| Standard lifting height | 3000 mm | |
| Forklift dimensions: L x W x H | 1818 x 1039 x 2238 mm | |
| Fork dimensions: L x W x H | 1220 x 197 x 60 mm | |
| Fork outer width | 570 mm | |
| Right-angle stacking aisle width, pallet 1000×1200 (1200 placed along the fork) | 2106+200 mm | |
| Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork) | 2012+200 mm | |
| Right-angle stacking aisle width, pallet 1000×1000 (1000 placed along the fork) | 1961+200 mm | |
| Performance parameters | Minimum turning radius | 1406 mm |
| Driving speed: full load / no load | 1.0 / 1.5 m/s | |
| Passability (slope / step / gap) | < 3% / 10 mm / 30 mm | |
| Navigation position accuracy | ±10 mm | |
| Navigation angle accuracy | ±1° | |
| Battery parameters | Battery specifications | 48 V / 90 Ah |
| Comprehensive battery life | 8~10 h | |
| Charging time (10% to 80%) | 1.5 h | |
| Charging method | Manual / Automatic | |
| Function configurations | Lidar number | 1 (3D / P+F R2000) +3 (SICK HV) |
| Wi-Fi roaming | ● | |
| 3D obstacle avoidance | ● | |
| Pallet recognition | ● | |
| Cage stack | ○ | |
| High shelf pallet recognition | ○ | |
| Pallet stack | ○ | |
| HMI display | ● | |
| Safety configurations | E-stop button | ● |
| Sound and light indicator | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm | |
| 360° laser protection | ● | |
| Fork height protection | ● |
Dimensions (mm)
Typical Applications
Space-Constrained Warehouses
SME Logistics
Light Manufacturing
