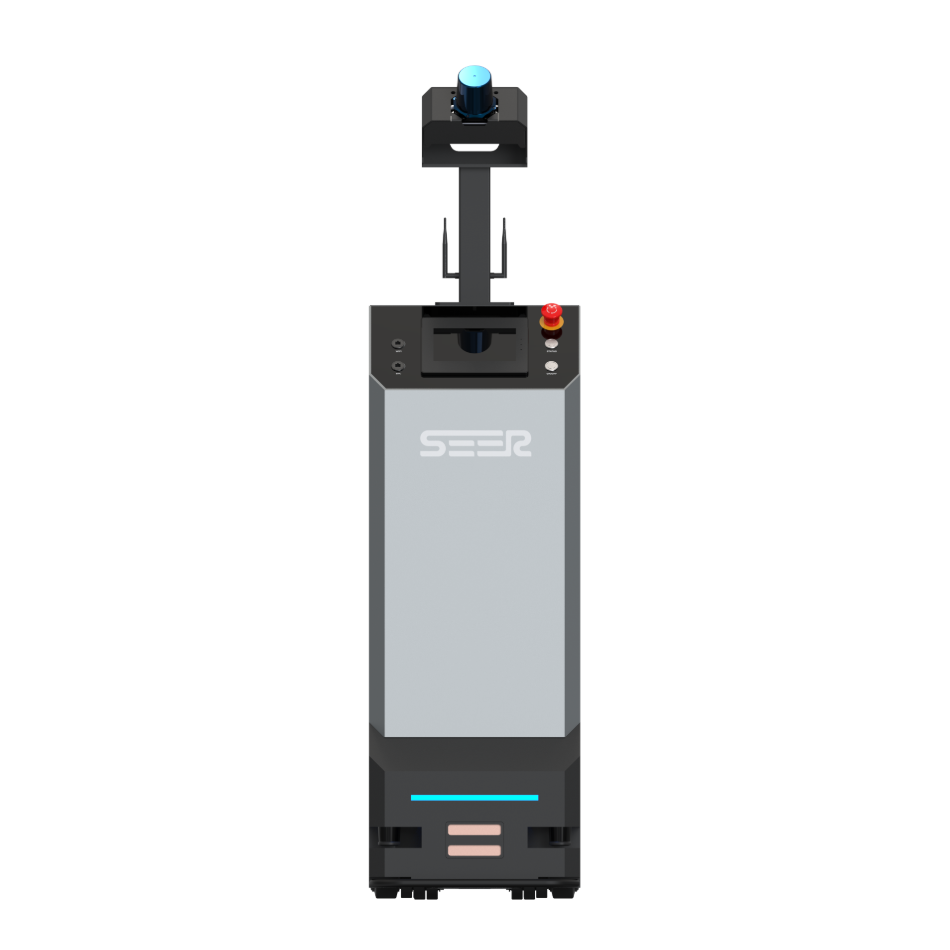

SFL-300L
Pallet TrucksSingle Fork Autonomous Forklift

SFL-300L

300 kg Load Capacity, Worry-free Battery Endurance

The SFL-300L single-fork autonomous forklift handles 300 kg loads with outstanding battery endurance — designed for tote and dolly ground transport where reliability matters most. Its single-fork design moves tote dollies and light shelves with a 150 mm lift, while the extended lithium battery ensures full-shift operations without interruption.

📦
400 mm Width, Designed for Narrow Aisles
Laser SLAM Navigation, High Precision Up to ±10 mm
🧭
Optional Pallet Recognition, Stable Pick-and-place of Goods
🛡️
Modular Design, Flexible Customization
🔗
Multiple Sensors, 360° Safety Protection

Interactive 3D Model

Drag to rotate · Scroll to zoom

Product parameters

📦
300
Rated Load Capacity (kg)
📊
8
Comprehensive Battery Life (h)
📏
150±5
Standard Lifting Height (mm)
🔄
600
Minimum Turning Radius (mm)
🎯
±10, ±1°
Positioning Accuracy (mm,°)
📦
0.8 / 1.4
Driving Speed (Full load / No load) (m/s)

Full specifications

● Standard    ○ Optional    – None
Basic parametersOperation typeAutomatic navigation
Navigation typeLaser SLAM
Pallet typeTote dolly / shelf
Rated load capacity300 kg (661.39 lb)
Load center distance350 mm (13.78 in)
Weight (with battery)230 kg (507.06 lb)
Standard lifting height150±5 mm (5.91 ± 0.20 in)
Forklift dimensions: L x W x H914 x 400 x 1576 mm (35.98 × 15.75 × 62.05 in)
Fork dimensions: L x W x H480 x 300 mm (18.90 × 11.81 in)
Fork outer width300 mm (11.81 in)
Right-angle stacking aisle width, pallet 1000×1200 (1200 placed along the fork)-
Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork)-
Right-angle stacking aisle width, pallet 1000×1000 (1000 placed along the fork)-
Minimum turning radius650 mm (25.59 in)
Ambient temperature and humidity rangeTEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation (TEMP: 32°F to 122°F / RH: 10% to 90%, no compression, no condensation)
Performance parametersDriving speed: full load / no load0.8 / 1.4 m/s (2.62 / 4.59 ft/s)
Passability (slope / step / gap)<3% / 2 mm / 5 mm (<3% / 0.08 in / 0.20 in)
Navigation position accuracy±10 mm (±0.39 in)
Navigation angle accuracy±1°
Battery parametersBattery specifications48 V / 35 Ah (ternary lithium)
Comprehensive battery life8 h
Charging time (10% to 80%)≤ 1.5 h
Charging methodManual / Automatic
Function configurationsLidar number1 (SLM-SLE4248) +2 (SLD40)
Wi-Fi roaming
3D obstacle avoidance
Pallet recognition
Cage stack-
High shelf pallet recognition-
Pallet stack-
HMI display
Safety configurationsE-stop button
Sound and light indicator
Braking distance: 1 m/s / 1.5 m/s≤30 cm / ≤50 cm (≤ 11.81 in / ≤19.69 in)
360° laser protection
Bumper strip
Fork height protection
CertificationsISO 3691-4-
EMC-
UN38.3-
RED-
Dimensions (mm)
SFL-300L dimensioned drawing (mm)

Typical Applications

Tote & Dolly Transport
Receiving & Dispatch
Manufacturing Intralogistics
