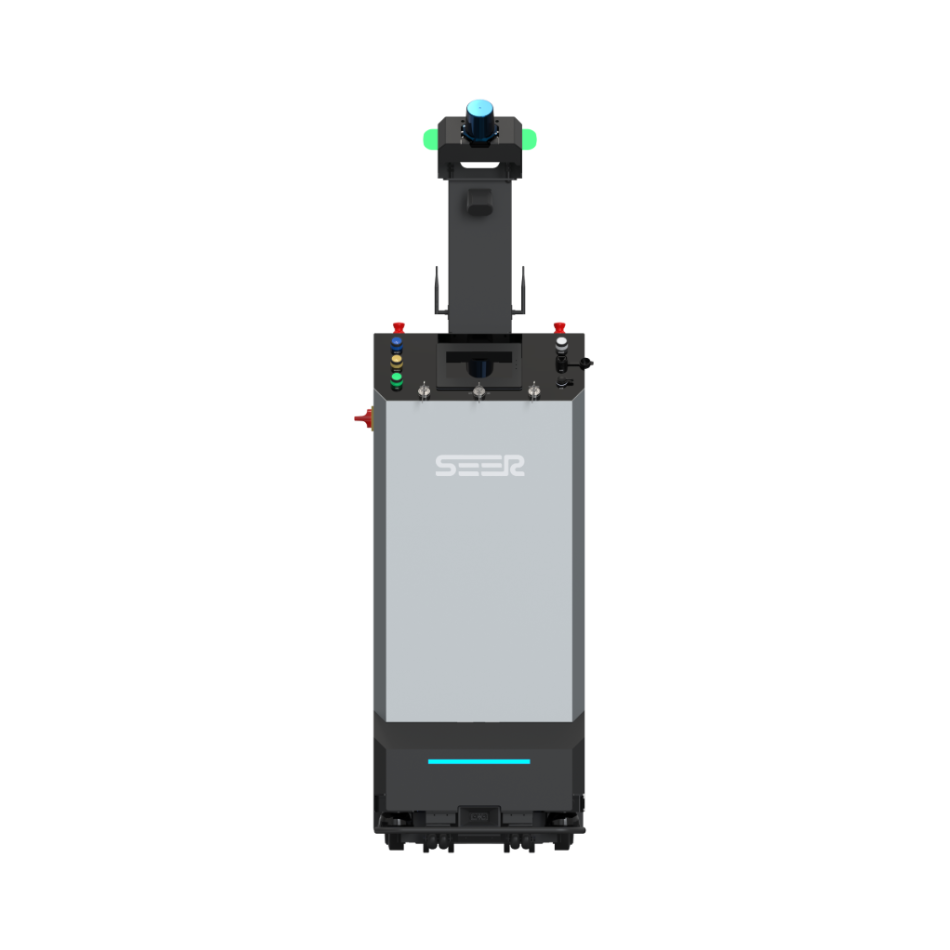

SOF-300EU

High Compatibility, Tote and Shelf Carrier

The SOF-300EU is engineered for European operations handling tote dollies and shelves. CE-certified, it integrates into European warehouse ecosystems with minimal commissioning time, pairing a compact 400 mm-wide body with precise laser SLAM navigation for confident ground transport in tight spaces.

📦
CE Certification, Safety Guaranteed
Robot Body Width: 400 mm, Designed for Narrow Aisles
🧭
AI Carrier Recognition, Precise and Efficient
🛡️
Modular Design, Flexible Customization
🔗
Multiple Sensors, 360° Safety Assurance

Interactive 3D Model

Drag to rotate · Scroll to zoom

Product parameters

📦
300
Rated Load Capacity (kg)
🔋
6
Comprehensive Battery Life (h)
📏
150±5 (default 70)
Standard Lifting Height (mm)
🔄
650
Minimum Turning Radius (mm)
🎯
±10, ±1
Positioning Accuracy (mm,°)
📦
0.8 / 1.4
Driving Speed (Full load / No load) (m/s)

Full specifications

● Standard    ○ Optional    – None
Basic parametersOperation typeAutomatic navigation
Navigation typeLaser SLAM
Pallet typeTote dolly / shelf
Rated load capacity300 kg (661.39 lb)
Load center distance415 mm (16.33 in)
Weight (with battery)270 kg (595.25 lb)
Standard lifting height150±5 mm (default 70 mm) (5.91 ±0.20 in, default 2.76 in)
Forklift dimensions: L x W x H1044 x 500 x 1722 mm (41.10×19.68×67.7 in)
Fork dimensions: L x W x H610 x 300 mm (24.01×11.81 in)
Fork outer width-
Right-angle stacking aisle width, pallet 1000×1200 (1200 placed along the fork)-
Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork)-
Right-angle stacking aisle width, pallet 1000×1200 (1000 placed along the fork)-
Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork)-
Right-angle stacking aisle width, pallet 1000×1000 (1000 placed along the fork)-
Minimum turning radius800 mm (31.49 in)
Ambient temperature and humidity rangeTEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation (TEMP: 32°F to 122°F / RH: 10% to 90%, no compression, no condensation)
Performance parametersDriving speed: full load / no load0.8 / 1.4 m/s (2.62 / 4.59 ft/s)
Passability (slope / step / gap)<3% / 2 mm / 5 mm (<3% / 0.08 in / 0.20 in)
Navigation position accuracy±10 mm (± 0.39 in)
Navigation angle accuracy±1°
Battery parametersBattery specifications48 V / 23 Ah (lithium iron phosphate)
Comprehensive battery life6 h
Charging time (10% to 80%)1 h
Charging methodManual / Automatic
Function configurationsLidar number1 (SLM-SLE4248) +2 (SICK / nanoScan3 Hv)
Wi-Fi roaming
3D obstacle avoidance
Pallet recognition
Cage stack-
High shelf pallet recognition-
Pallet stack-
HMI display
Safety configurationsE-stop button
Sound and light indicator
Braking distance: 1 m/s / 1.5 m/s≤30 cm / ≤50 cm (≤11.81 in / ≤19.69 in)
360° laser protection
Bumper strip
Fork height protection
CertificationsISO 3691-4
EMC
UN38.3
RED
Dimensions (mm)
SOF-300EU dimensioned drawing (mm)

Typical Applications

European Distribution Centers
Tote & Shelf Carrier Operations
3PL Operations
