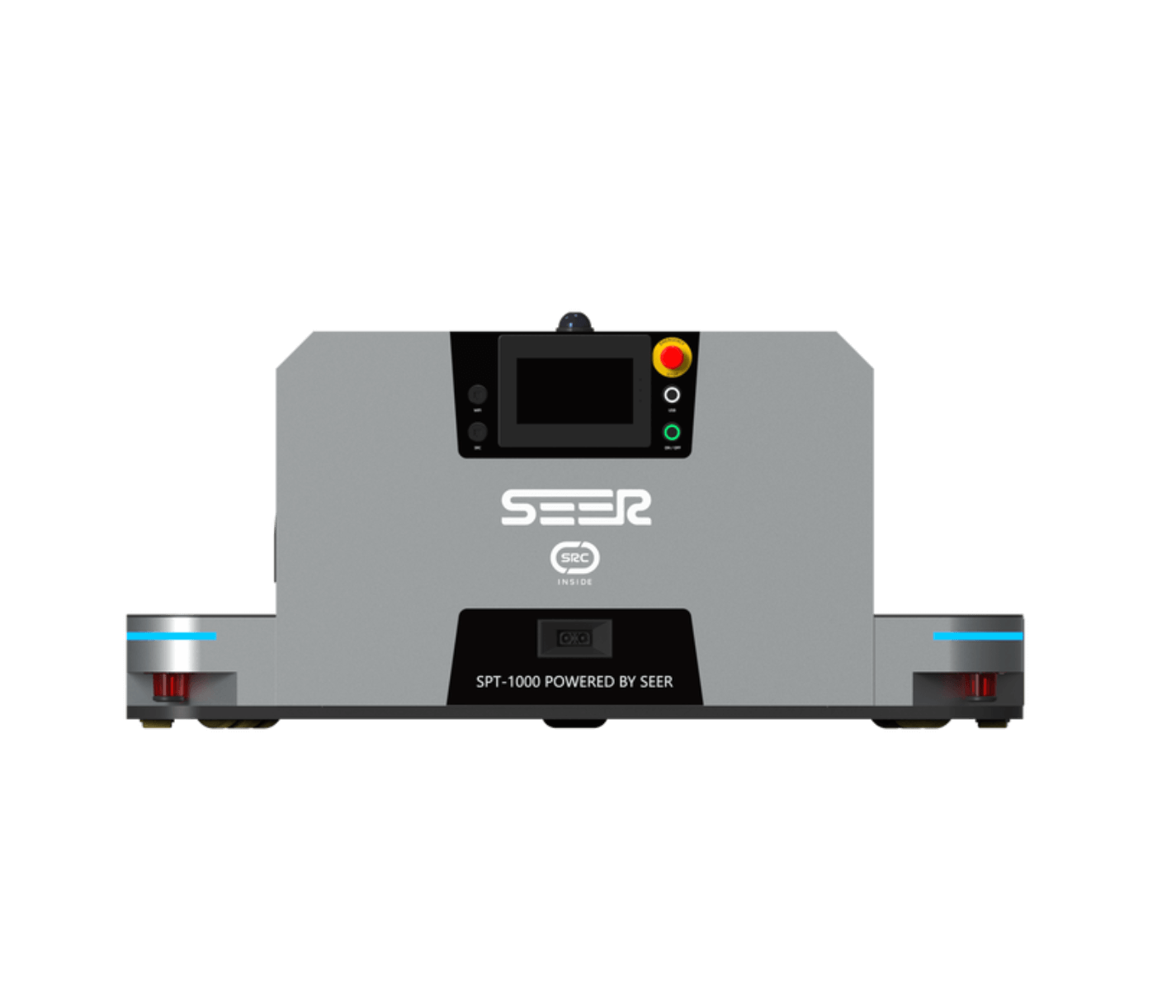

SPT-1000
Pallet TrucksAutonomous Forklift

SPT-1000

Narrow Aisles Exclusive, Versatile and Universal

The SPT-1000 is purpose-built for narrow-aisle warehouse environments where space is at a premium. Its slim profile navigates aisles that conventional forklifts cannot access, while maintaining a 1,000 kg load capacity suitable for most standard pallet operations. Universal pallet compatibility and precise SLAM positioning make it the go-to solution for high-density storage facilities.

📦
Compatible with Various Pallets, Worry-free Handling
1200 mm Slim robot Body, 1 T Load Capacity
🧭
AI Deep Learning, Recognize Multiple Carriers
🛡️
4 Navigation Options, Accuracy up to ±10 mm
🔗
Flexible Customization, 4 Options Available

Interactive 3D Model

Drag to rotate · Scroll to zoom

Product parameters

📦
1000
Rated Load Capacity (kg)
🔋
8
Comprehensive Battery Life (h)
📏
190
Standard Lifting Height (mm)
🔄
900
Minimum Turning Radius (mm)
🎯
±10, ±1
Positioning Accuracy (mm,°)
📦
1.1
Driving Speed (Full load / No load) (m/s)

Full specifications

● Standard    ○ Optional    – None
Basic parametersOperation typeAutomatic navigation
Navigation typeLaser SLAM
Pallet typeOpen pallet / closed pallet
Rated load capacity1000 kg
Load center distance100 mm
Weight (with battery)450 kg
Standard lifting height190 mm
Forklift dimensions: L x W x H1450 x 1200 x 556 mm
Fork dimensions: L x W x H1220 x 168 x 60 mm
Fork outer width610 mm
Right-angle stacking aisle width, pallet 1000×1200 (1200 placed along the fork)2000 mm
Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork)2000 mm
Right-angle stacking aisle width, pallet 1000×1000 (1000 placed along the fork)2000 mm
Minimum turning radius900 mm
Ambient temperature and humidity rangeTEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation
Performance parametersDriving speed: full load / no load1.1 m/s
Passability (slope / step / gap)< 3% / 5 mm / 10 mm
Navigation position accuracy±10 mm
Navigation angle accuracy±1°
Battery parametersBattery specifications48 V / 36 Ah (lithium iron phosphate)
Comprehensive battery life8 h
Charging time (10% to 80%)1.5 h
Charging methodManual / Automatic
Function configurationsLidar number1 (H1E0 / Mid-360)+4 (C213)
Wi-Fi roaming
3D obstacle avoidance
Pallet recognition
HMI display
Safety configurationsE-stop button
Sound and light indicator
Braking distance: 1 m/s / 1.5 m/s≤30 cm / ≤50 cm
360° laser protection
Bumper strip
Fork height protection
Dimensions (mm)
SPT-1000 dimensioned drawing (mm)

Typical Applications

Narrow-Aisle Warehouses
High-Density Storage
Pharmaceutical & Electronics
