Question 1

What is an automated lifting robot?

Accepted Answer

An automated lifting robot is a driverless mobile robot that slides under a shelf, rack or pallet, lifts it, and carries it across the warehouse — no operator and no fixed conveyor. FlyWei's lifting robots are the AMB and SBA series: latent-jacking and rotary-lift AMRs built for goods-to-person picking, shelf-moving, tugging and pallet transport. They navigate by SLAM laser, dock to ±5 mm, and run up to 12 hours on a charge.

Question 2

What can the AMB-300 base robot do?

Accepted Answer

The AMB-300 is a compact base robot (mobile platform) — it carries a fixed top deck or a bolt-on module and transports loads up to 300 kg autonomously, without any built-in lift or jacking mechanism. It sits in FlyWei's AMB range alongside the AMB-150 and AMB-300XS; for under-shelf jacking choose the AMB-300JZ, and for high-capacity jacking the AMB-1000JS. The AMB-300 suits goods-to-person picking and dense intralogistics layouts, with ±5 mm docking accuracy.

Question 3

What is the difference between a lifting robot and a base AMR?

Accepted Answer

A base AMR (such as the AMB-150 or SBA-400EU) is the mobile platform — it carries a fixed top deck or a bolt-on module. A lifting robot adds an active lift mechanism: latent jacking (AMB-300JZ, AMB-JS), rotary lift (SJV-SW600) or under-shelf jacking, so it can pick a load up and set it down rather than only carry it. Both share the same controller and M4/RDS fleet software, so you can run them together in one fleet.

Question 4

Can one lifting robot handle different shelves and loads?

Accepted Answer

Yes. FlyWei lifting robots use interchangeable top modules — jacking, conveyor, roller and shelf adaptors — so a single robot can move shelves, pallets, cages and totes. Payloads range from a few hundred kilograms on the AMB-300 up to 1,000 kg on the AMB-1000JS. A free UK site survey matches the right module and payload to your racking and SKUs.

Basic parameters	Navigation type	Laser SLAM
	Dimensions (L x W x H)	800 x 560 x 200 mm
	Rotation diameter	840 mm
	Weight (with battery)	66 kg
	Maximum load capacity	150 kg
	Chassis ground clearance	25 mm
	Navigation laser scanning height	228 mm (P+F) / 215 mm (H1)
	Ambient temperature and humidity range	0°C to 50°C / RH 10% to 90%, no condensation
Performance parameters	Passability (slope / step / gap)	≤5% / 5 mm / 10 mm
	Minimum aisle width	700 mm
	Navigation position accuracy	±5 mm
	Navigation angle accuracy	±0.5°
	Driving speed	≤1.4 m/s
Battery parameters	Battery specifications	48 V / 25 Ah (lithium iron phosphate)
	Comprehensive battery life	12 h
	Charging time (10% to 80%)	≤1 h
	Charging method	Manual / Automatic / Fast battery swap
Configurations	Lidar number	1 (P+F / H1) or 2 (P+F / H1)
	E-stop button	●
	Speaker	●
	Ambient lamp	●
Function configurations	Basic functions	●
	Wi-Fi roaming	●
	Automatic charging	●
	Shelf recognition	●
	Laser reflector navigation	○
	3D obstacle avoidance	○
Certifications	EMC	●
	UN38.3	●
	Cleanliness	-
Drawing

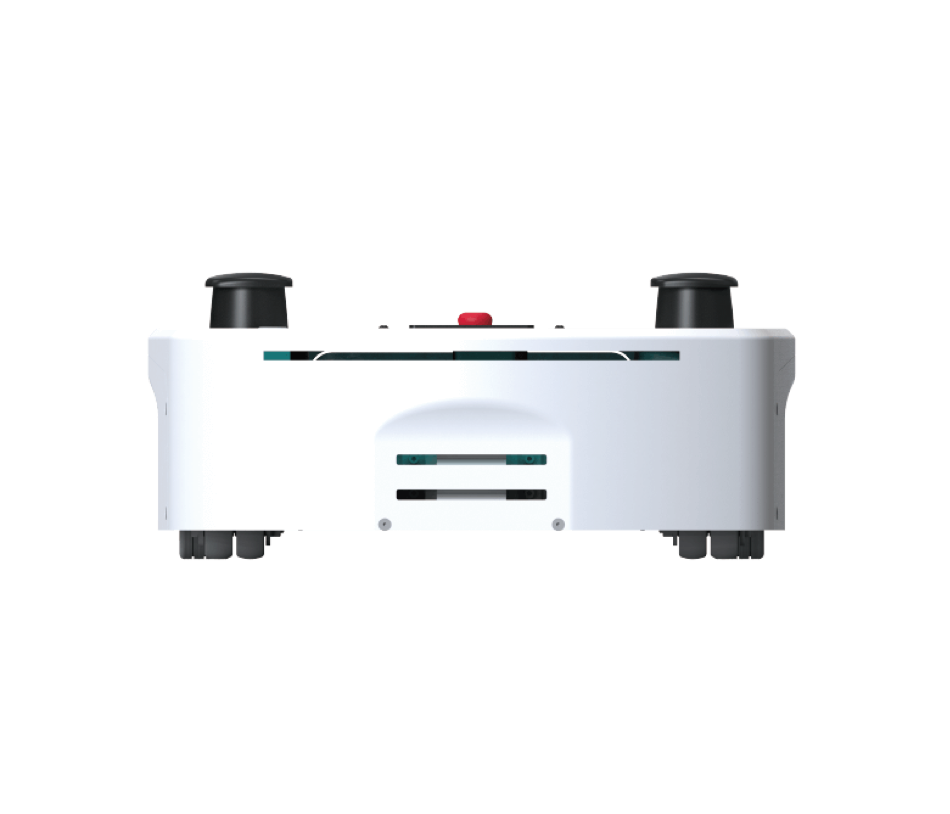

AMB-150

Interactive 3D Model

Product parameters

Full specifications

Typical Applications

Related Products

AMB-300

AMB-300XS

SBA-400EU

Ready to automate your operation?
