Reach TrucksReach Truck

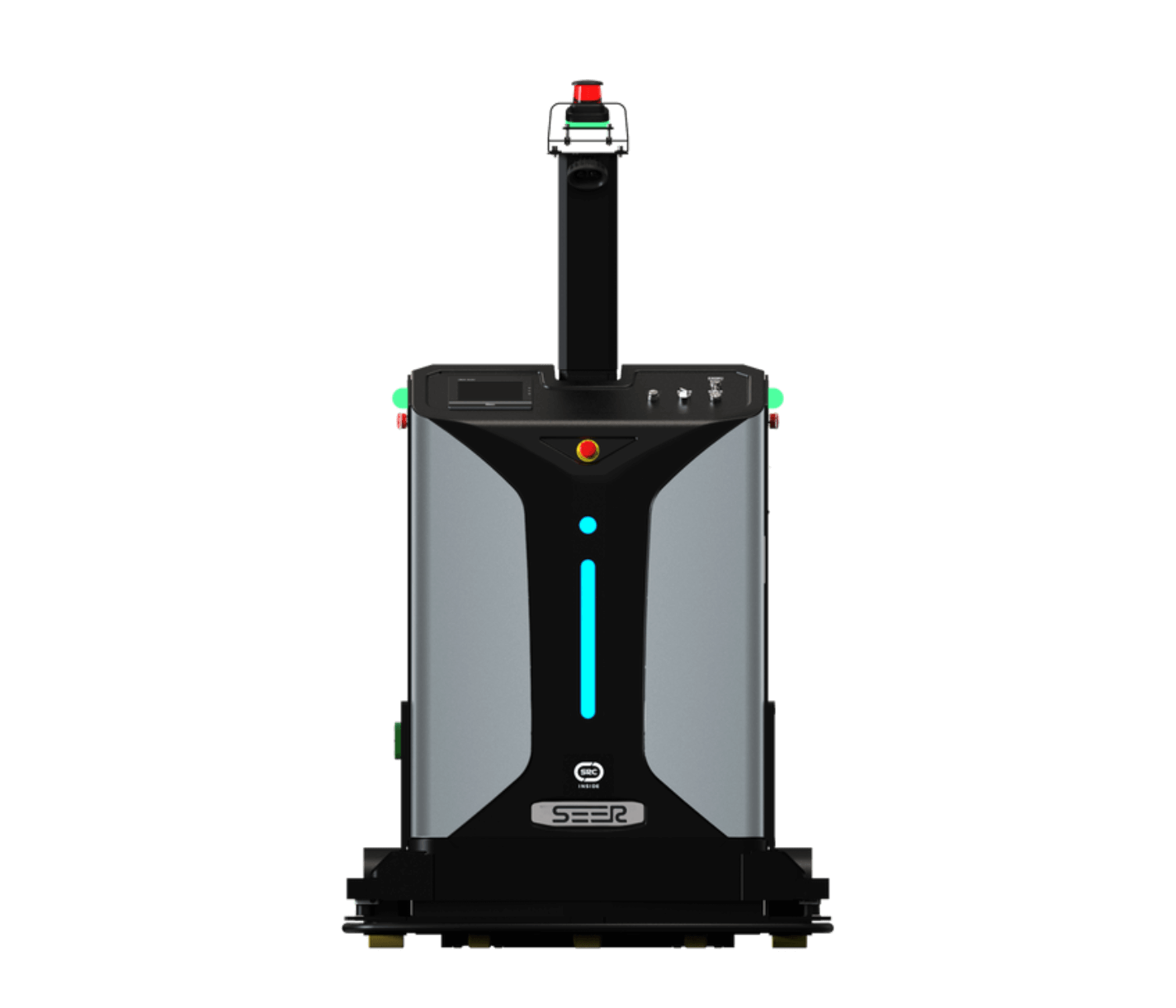

SSR-1400
Flexible Reach, Slim Robot Body
The SSR-1400 autonomous reach truck is our core reach truck platform, combining a 1,400 kg load capacity with a slim body design for narrow-aisle high-bay storage. Its reach mechanism and advanced height-positioning system enable automated storage and retrieval to a 3 m standard lifting height, making it ideal for both greenfield and brownfield warehouse automation projects.
📦
Compatible with Various Pallets, 3-meter Stacking
⚡
AI Deep Learning, Recognize Multiple Carriers
🧭
1.4 T Load Capacity, 8-hour Endurance
🛡️
±10 mm Positioning Accuracy, 1482 mm Minimum Turning Radius
🔗
Comprehensive Protection, Genuine Safety
🔋
Flexible Customization, 4 Options Available
Interactive 3D Model
Drag to rotate · Scroll to zoom
Product parameters
📦
1400
Rated Load Capacity (kg)
🔋
8
Comprehensive Battery Life (h)
📏
3000
Standard Lifting Height (mm)
🔄
1482
Minimum Turning Radius (mm)
🎯
±10,±0.5
Positioning Accuracy (mm,°)
📦
1.2 / 1.5
Driving Speed (Full load / No load) (m/s)
Full specifications
● Standard ○ Optional – None
| Basic parameters | Operation type | Automatic navigation, by manual control device |
| Navigation type | Laser SLAM | |
| Pallet type | Open pallet / closed pallet | |
| Rated load capacity | 1400 kg | |
| Load center distance | 500 mm | |
| Weight (with battery) | 1890 kg | |
| Standard lifting height | 3000 mm | |
| Forklift dimensions: L x W x H | 2264 x 1184 x 2172 mm | |
| Fork dimensions: L x W x H | 1220 x 120 x 40 mm | |
| Fork outer width | 650 mm | |
| Right-angle stacking aisle width, pallet 1000×1200 (1200 placed along the fork) | 2195 / 2255 mm | |
| Right-angle stacking aisle width, pallet 800×1200 (1200 placed along the fork) | 2125 / 2185 mm | |
| Minimum turning radius | 1480 mm | |
| Ambient temperature and humidity range | TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation | |
| Performance parameters | Driving speed: full load / no load | 1.2 / 1.5 m/s |
| Passability (slope / step / gap) | < 5% / 20 mm / 30 mm | |
| Navigation position accuracy | ±10 mm | |
| Navigation angle accuracy | ±0.5° | |
| Battery parameters | Comprehensive battery life | 10 h |
| Charging time (10% to 80%) | 2 h | |
| Charging method | Manual / Automatic | |
| Battery specifications | 24 V / 180 Ah (lithium iron phosphate) | |
| Function configurations | Wi-Fi roaming | ○ |
| 3D obstacle avoidance | ○ | |
| Pallet recognition | ○ | |
| Cage stack | ○ | |
| High shelf pallet recognition | ○ | |
| Pallet stack | ○ | |
| HMI display | ● | |
| Lidar number | 1 (P+F R2000) +3 (OLEI LR-1BS2H) | |
| Safety configurations | E-stop button | ● |
| Sound and light indicator | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm | |
| 360° laser protection | ● | |
| Bumper strip | ● | |
| Fork height protection | ● | |
| Certifications | UN38.3 | ● |
Dimensions (mm)

Typical Applications
High-Bay Warehouses
Automated Storage & Retrieval
Brownfield Automation
